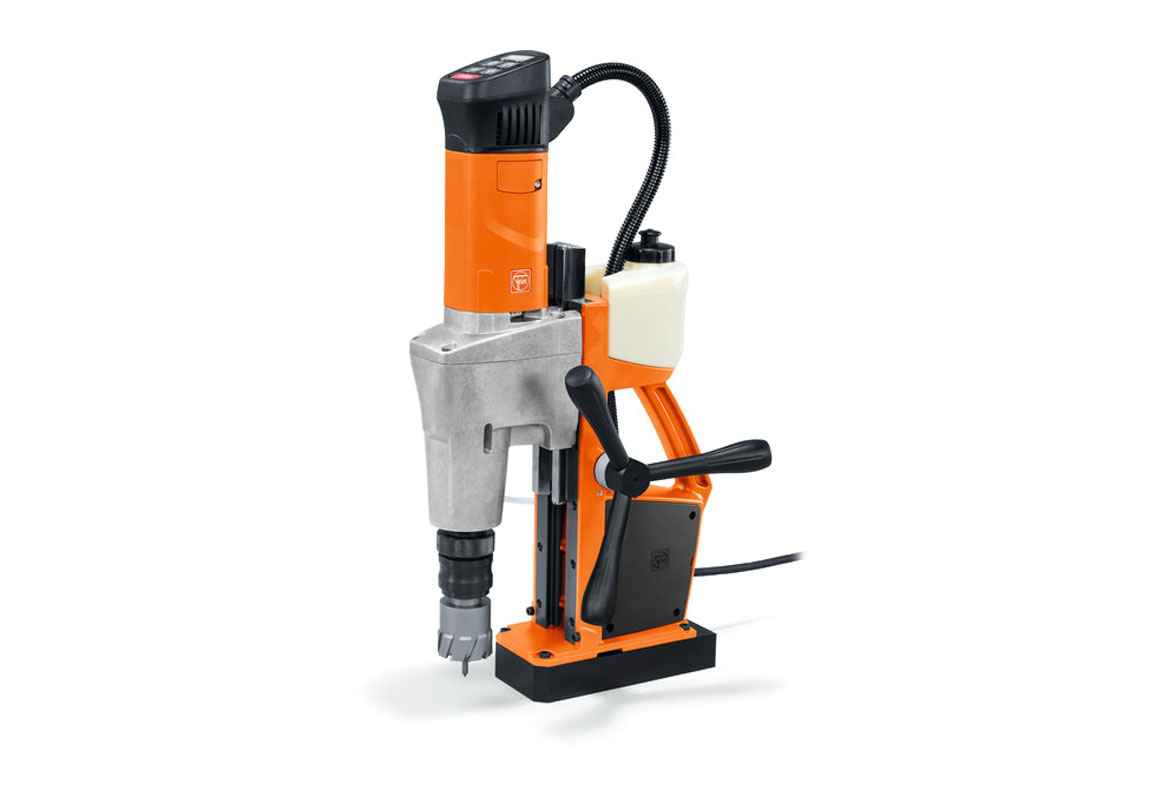

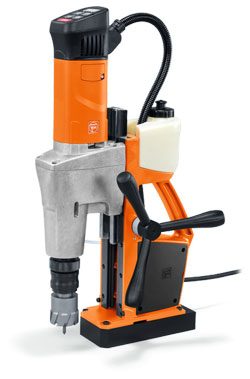

The Fein 2-1/16" Magnetic Drill is built with a 2-speed gearbox that enables this drill to use the largest of core bits.
Build
The double drill motor guides allow for use of large core bits while the drill has been made compact to help get in the most confined of spaces.
The field of view is simple to use and helps to reduce errors.
The speed is electronically controlled which makes for stable power and high-performance from the drill.
Included gauge indicates how much holding force is being used by the magnet.
Integrated cooling tank helps to keep the drill bit from overheating and the hand feed wheel can be mounted on either side of the tool for operator convenience.

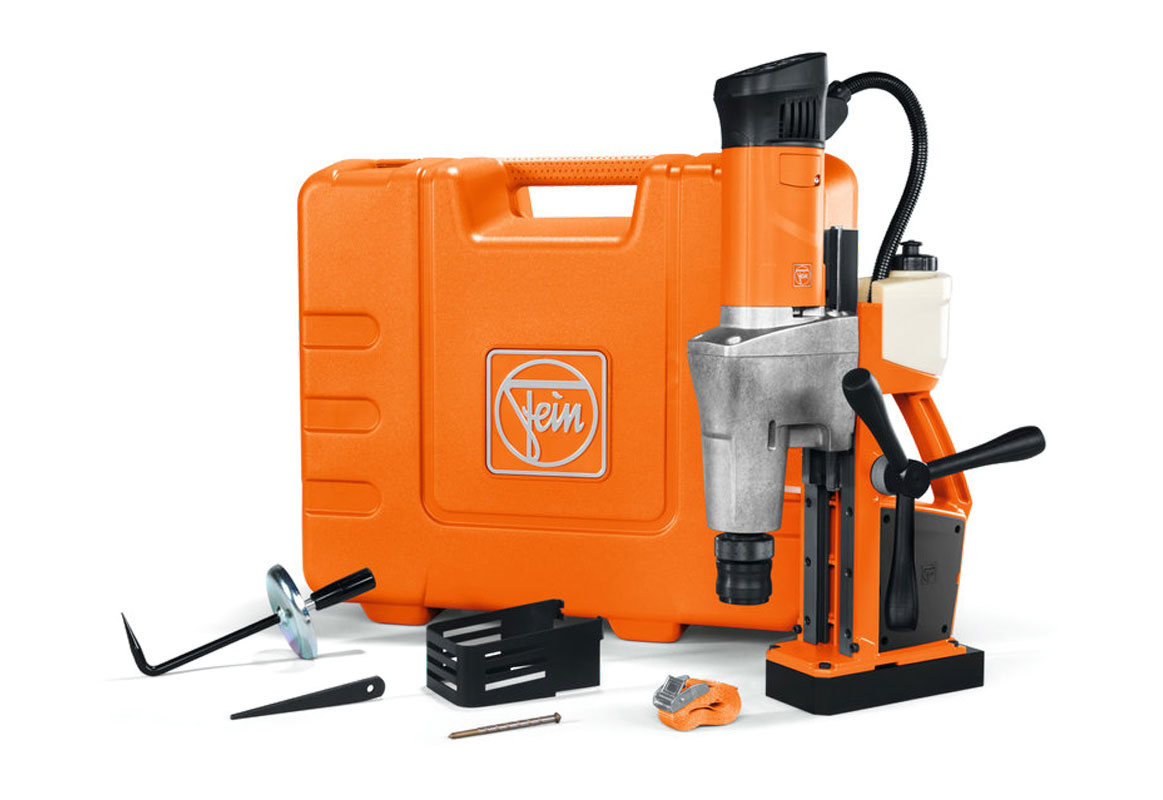

The following is included with this drill:
- (1) 2-1/16" Magnetic Drill (KBM50U)
- (1) Coolant Tank
- (1) Safety Strap
- (1) Chip Hook
- (1) Centering Pin
- (1) Touch Guard
- (1) Drift
- (1) Case
Vendor Part #: | KBM50U |
Cable Length: | [13 foot] |
Stroke: | [5-11/16 inches] |
Weight: | [30.6 lbs] |
Carbide Annular Cutter Max Diameter: | [2 inches] |
HSS Annular Cutters Max Diameter: | [1-9/16 inches] |
Mag Base Max Drilling Depth: | [2-3 inches] |
Twist Drill Max Diameter: | [7/8 inches] |
Tapping: | [5/8 inches] |
Max Countersinking Diameter: | [2 inches] |
Reaming Max Diameter: | [7/8 inches] |
Power Consumption: | [1200 watts] |
Power Output: | [610 watts] |
1st Gear: | [260 RPM] |
2nd Gear: | [260-520 RPM] |
Annular Cutter Holder: | [3/4 inch Weldon] |
Tool Mount: | MT 3 |
Total Stroke Range: | [12-3/8 inches] |
Magnetic Holding Force: | [2,800 lbs.] |
Magnetic Base Dimensions: | [7-11/16 inches] x [3-9/16 inches] |
