FEIN Power Tool Company Handheld Core Drill - QuickIN Plus - 1200 W / KBH25
ELECTRIC - 0-520 RPM - Torsion-Free Barrel-Type Motor Housing - Torque Slip Clutch - Speed Control - Reversible - 7.3 lbs - For hand drilling holes into metal

Handheld Core Drill - QuickIN Plus - 1200 W / KBH25


ELECTRIC - 0-520 RPM - Torsion-Free Barrel-Type Motor Housing - Torque Slip Clutch - Speed Control - Reversible - 7.3 lbs - For hand drilling holes into metal

Product #: FEIKBH25
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.

Pls.Call

0

/EA

$1,200.00

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for Availability : 403-342-6030


QTY:

ADD TO CART
BUY DIRECT

No customer reviews for the moment.

Product Description

The Fein KBH 25 Handheld Core Drill is built with new drilling technology that enables rapid work progress with considerably less effort.


Build

Convenient operation that is up to 5 times faster, due to new drilling technology and specially-developed core bit cutting geometry.

Hand-held drilling of holes up to 1 in diameter in steel up to 3/4 in thickness using carbide core bits and holes up to 2-1/8 in diameter in sheet metal up to 5/32 in thickness with carbide hole saws.

Comes with a powerful motor, torsion-free barrel-type motor housing, torque slip clutch, infinitely variable electronic speed adjustment, electronic overload protection, reverse function, and self-start lock.


Works with a wide range of accessories!

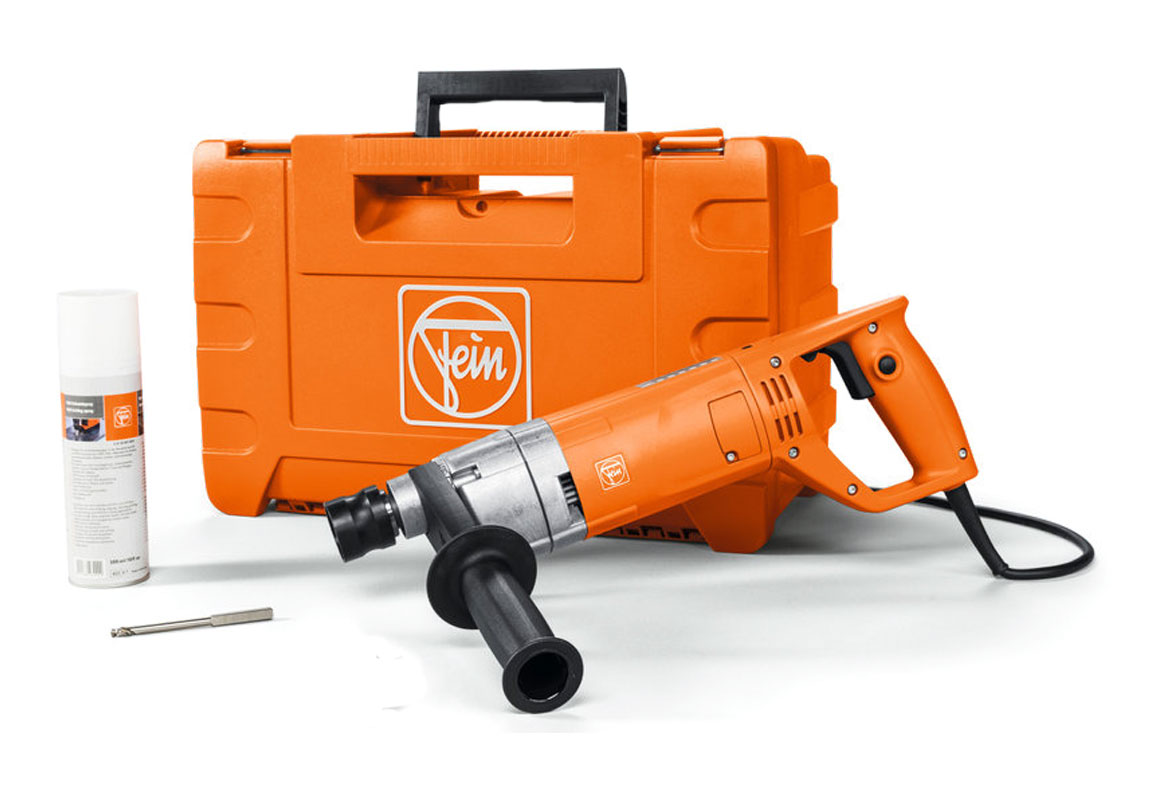

In the Box

The following is included with this Handheld Core Drill (KBH 25):

  • (1) Handheld Core Drill (KBH 25)
  • (1) Pilot Bit
  • (1) Side Handle
  • (1) Cutting Spray
  • (1) Plastic Tool Case

Accessories Sold Separately.

Product Specifications
Vendor Part #:KBH25 (7 271 01 61 09 0)
1st Speed No Load Speed:0-520 RPM
Cable Length:[13 foot]
Chuck Type:QuickIN Plus
Max Hole Diameter - Core Bit:3/4 inch
Weight:7.3 lbs
Tapping:15/32 inch
Power Consumption:[1200 watts]
Power Output:680 watts
Full Load Torque:443 in/lbs
No Load Torque:443 in/lbs
Capacity in Stainless Steel Dia.:1 inch
Clamping Neck:381 inch
Min. Clearance:1-1/16 inch
Max Hole Diameter - Steel Core Bits:9/16 inch to 1 inch
Max Hole Diameter - Aluminum Core Bits:9-1/16 inch to 1-3/16 inch
Max Hole Diameter - Steel Hole Saws:9/16 inch to 2-1/8 inches
Max Hole Saw Depth:5/32 inch
  • Drilling Holes in Steel
  • Drilling Holes in Aluminum
