RIDGID Hammer Chuck Machine Only - No Die Head or Dies
Hand Tools - THREADER 115V 535M 36RPM - *MACHINE ONLY - *REPLACES 41915
Hammer Chuck Machine Only - No Die Head or Dies
Product #: RDG96497
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
RIDGID®, a leading manufacturer of innovative tools for the professional trades, offers over 300 types of tools. No customer reviews for the moment.
Product Description

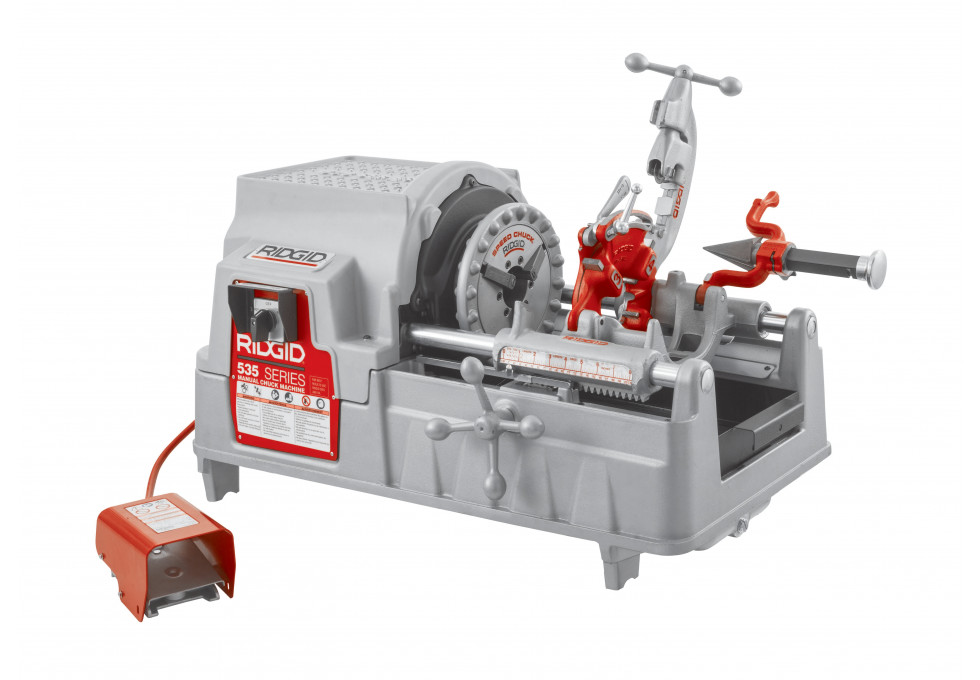

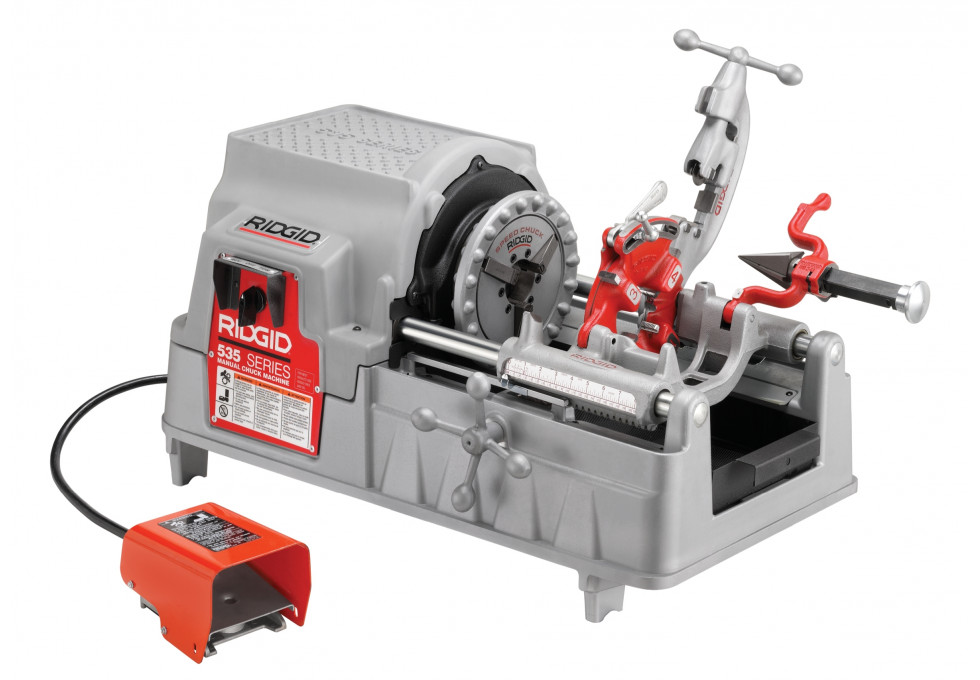

The Ridgid Hammer Chuck Machine Only - No Die Head or Dies. 535M 115V 36 RPM MACH ONLY
Build
- Large 1.75 gallon (6.6 L) oil tray.
- Large chip tray.
- Generous top cover for keeping tools and fittings handy.
- High clearance carriage makes threading easier.
- Speed chuck with rocker-action jaws centers and grips work piece instantly.
- Can be used with geared Models 141 and 161 threaders.
- Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
Approximate Item/Package Dimensions in inches
- Width: 25.0
- Height: 27.0
- Length: 46.0
Approximate Item/Package Weight in pounds
- Weight: 267.0
Product Specifications
| Vendor Part #: | 96497 |
| Horsepower: | 0.5 |
| Max Operating Temperature: | 36 F |
| RPM: | 36 |
| Type: | AC Universal (Series) |
| Voltage: | 115 VLT |
| Weight: | 245 LB / 111.1 KG |
| Spec 1: | Pipe Capacity : 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders. |
| Spec 2: | Bolt Capacity : 1/4"-2" (6mm-50mm). |
| Spec 3: | Switches : Forward/off/reverse and integral foot switch. |
| Spec 4: | Chuck : Speed Chuck™ with three replaceable rocker-action jaw inserts. |
| Spec 5: | Rear Centering Device : Cam-action, turns with chuck. |
| Spec 6: | Cutters : Self-centering, full-floating. Two models available:Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering c |
| Spec 7: | Reamer : 5-flute cone, RH, 1/8"-2" (3mm-50mm). |
| Spec 8: | Oil Pump : Self-priming gerotor oil pump. |
| Spec 9: | Reamers : RH/LH combination reamer available. |
| Amperage: | 15 |
