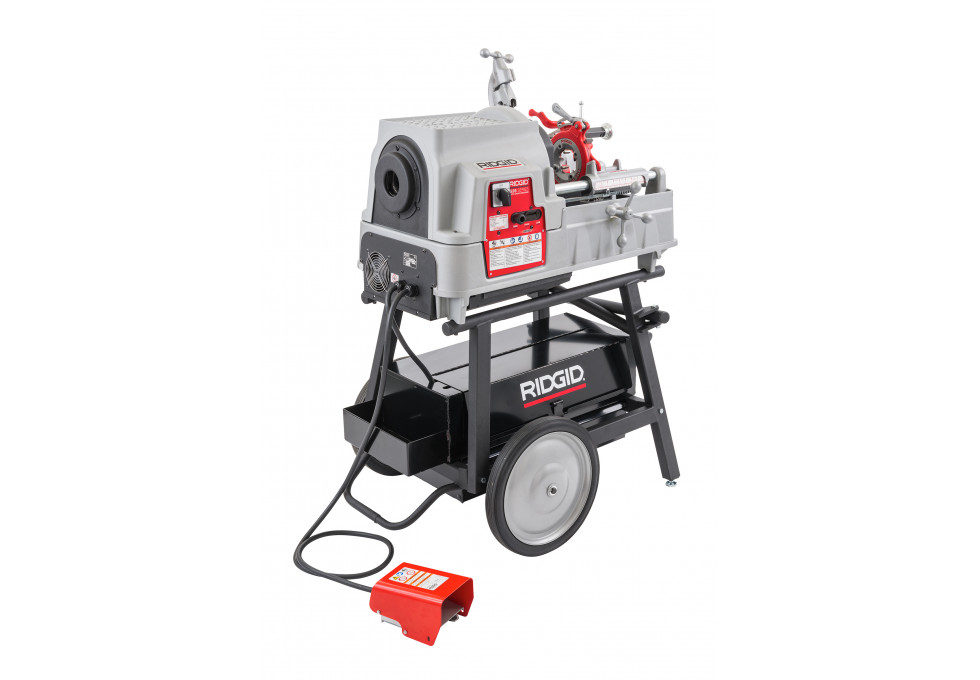

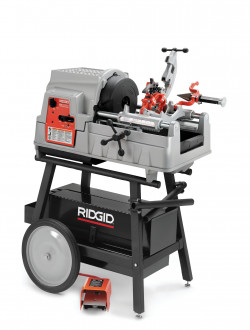

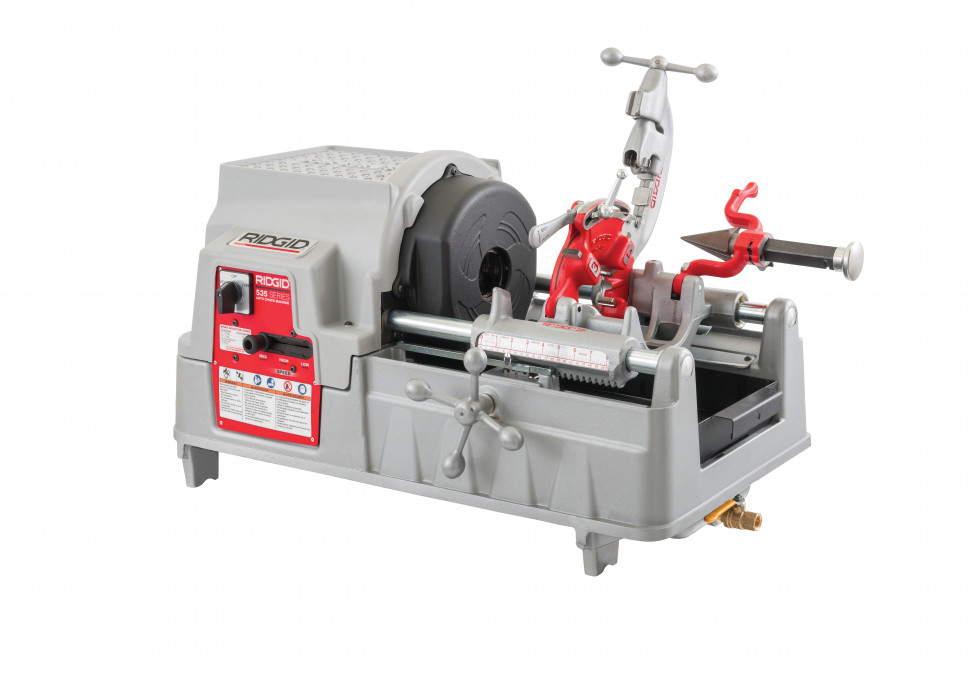

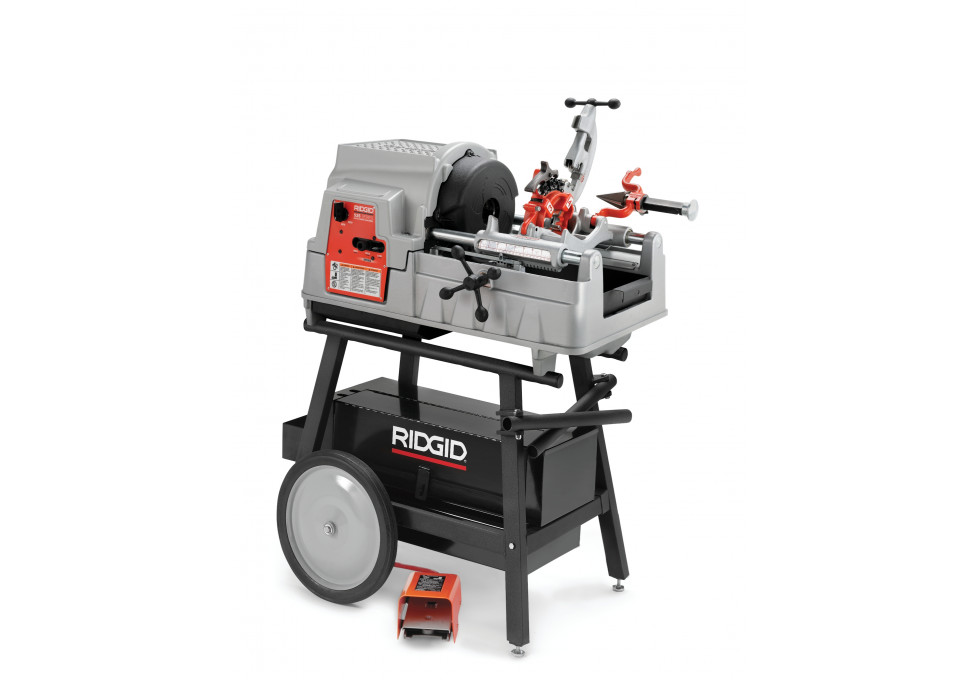

RIDGID Automatic Chuck Machine Only - No Die Head or Dies
Offers longer uninterrupted threading, large top cover allows to keep tools handy.

Automatic Chuck Machine Only - No Die Head or Dies


Offers longer uninterrupted threading, large top cover allows to keep tools handy.

Product #: RDG91142
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.

Pls.Call

0

/EA

$5,555.75

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for Availability : 403-342-6030


QTY:

ADD TO CART
BUY DIRECT
RIDGID®, a leading manufacturer of innovative tools for the professional trades, offers over 300 types of tools.

No customer reviews for the moment.

Product Description
The Ridgid Automatic Chuck Machine Only - No Die Head or Dies. 535 PLATFORM MACH L/DH & DIES

Build

  • Use w/semi-automatic, self-opening or quick-opening die heads.
  • Induction motor for better speed, torque & noise reduction.
  • 3-speed transmission offers greater control.
  • Can be used with the 141 Geared Threader for pipe up to 4".
  • High clearance carriage.
  • Can be used with geared threader Model 141.
  • Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.

Approximate Item/Package Dimensions in inches

  • Width: 28.5
  • Height: 26.5
  • Length: 47.5

Approximate Item/Package Weight in pounds

  • Weight: 341.0
Product Specifications
Vendor Part #:91142
Horsepower:2
Max Operating Temperature:0 F
RPM:16/46/58
Type:AC Induction Single Phase
Voltage:120 VLT
Weight:340 LB / 155 KG
Spec 1:Pipe Capacity : 1/8"-2" (3 mm-50 mm) 2 1/2"-4" (62 mm-100 mm) with 141 geared threader.
Spec 2:Bolt Capacity : 1/4"-2” (8 mm-50 mm).
Spec 3:Switches : Forward/off/reverse and integral safety foot switch.
Spec 4:Chuck : Automatic with four reversible forged jaws.
Spec 5:Rear Centering Device : Automatic, centering only.
Spec 6:Cutters : Self-centering, full-floating. Two models available:
Spec 7:Model 820 Wheel-Type Cutter, pipe capacity 1/8-2'' (6-50 mm), bolt capacity 1/4-1'' (8-25 mm).
Spec 8:Model 821 Blade Type Cutter, pipe capacity 1/2-2'' (15-50 mm).
Spec 9:Reamer : 5-flute cone, RH, 1/8"-2" (3 mm-50 mm).
Spec 10:Oil Pump : Self-priming gerotor oil pump.
Spec 11:RH/LH combination reamer available.
Amperage:18
