Milwaukee Power Tools Drill Diamond Core 300/600 20 A w/ Clutch
DRILL DMD 300/600 20A CL
Drill Diamond Core 300/600 20 A w/ Clutch
DRILL DMD 300/600 20A CL
Product #: MWA4004-20
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Since the company began in 1924, Milwaukee Tool has led the industry in developing innovative solutions that deliver increased productivity and unmatched durability for professional construction users. Dedicated to building advanced, trade-specific power tools, hand tools, and a wide variety of accessories for elite professionals.
No customer reviews for the moment.
Product Description

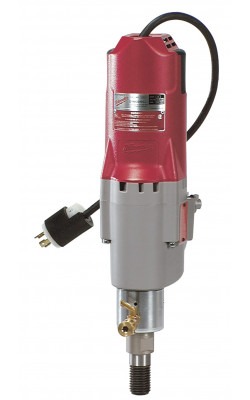

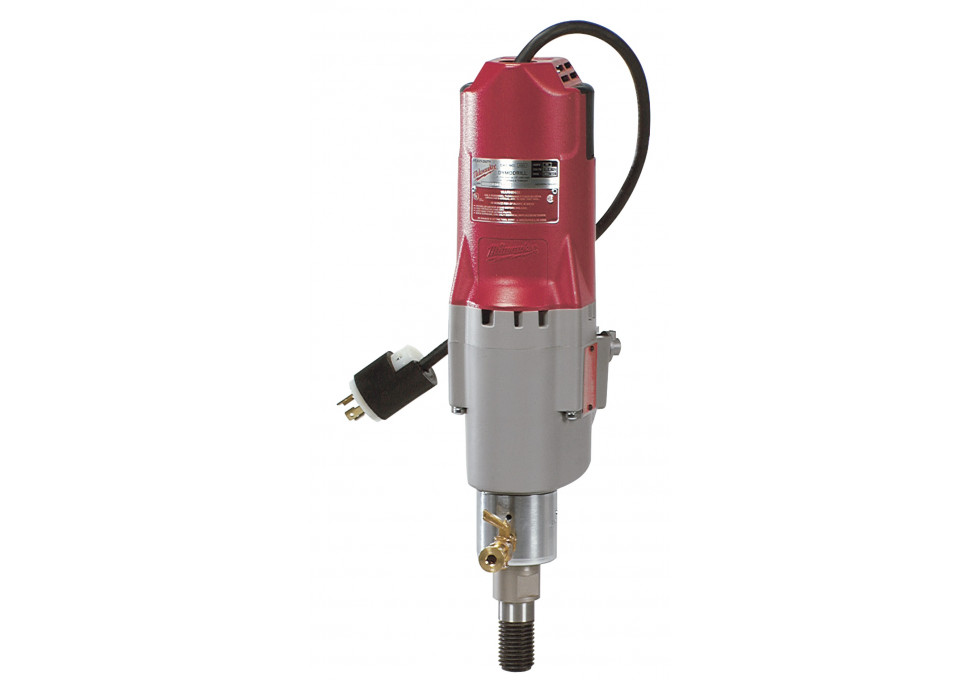

The Milwaukee Drill Diamond Core 300/600 20 A w/ Clutch. Diamond coring motors are used with Vac-U-Rig® and mooring diamond core rigs to drill holes into reinforced concrete. This 20 amp model features 4.8 peak horsepower with a 300 RPM or 600 RPM operating speed. The 4004 has a clutch to protect gears and motor against overload. This unit will handle core bits from 4 in. to 14 in. in diameter.
Build
- Two speeds: 300 and 600 RPM
- 20 amp motor
- Clutch protection protects gears and motor
- Built-in water swivel
Manufacturer Warranty
- 5 Years
Approximate Item/Package Dimensions in inches
- Width: 7.050
- Height: 6.700
- Depth: 23.850
Approximate Item/Package Weight in pounds
- Weight: 30.445
Product Specifications
| Vendor Part #: | 4004-20 |
| Chuck Capacity: | 1 |
| Clutch Type: | Clutch protection |
| Housing Material: | plastic, metal |
| Voltage: | 120 Volts |
| GTIN: | 00045242009206 |
| MFG Part # (OEM): | 4004-20 |
| Chuck Design: | Keyless |
| Color / Finish: | Red, Grey, Black |
| Cord Length (ft): | 2.79 |
| Side Handle: | No |
| Package Contents: | Drill, built-in water swivel, water hose adapter, water control valve, open end wrench |
| Manufacturer Warranty: | 5 Years |
| Coolant System: | No |
| Net Tool Weight (lbs): | 24.0 |
| First Gear Maximum Speed (rpm): | 300.0 |
| Stroke (in): | 0.0 |
| Amperage (A): | 20.0 |
| Power Consumption (W): | 20.0 |
| Speeds: | 2 |
| First Gear Minimum Speed (rpm): | 0.0 |
| Second Gear Maximum Speed (rpm): | 600.0 |
| Second Gear Minimum Speed (rpm): | 0.0 |
| Drilling Depth (in): | 14.0 |
| Motor Size: | 20 Amp |
| Total Stroke Range (in): | 0 |
| Included Safety Features: | Clutch to protect against overload |
