Jet Equipment & Tools 20' Lift - Heavy Duty Chain Hoist - 1 ton
20' Lift - Heavy Duty KCH Series Chain Hoist - 1 ton
20' Lift - Heavy Duty Chain Hoist - 1 ton
20' Lift - Heavy Duty KCH Series Chain Hoist - 1 ton
Product #: JET101116
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.
Product Description

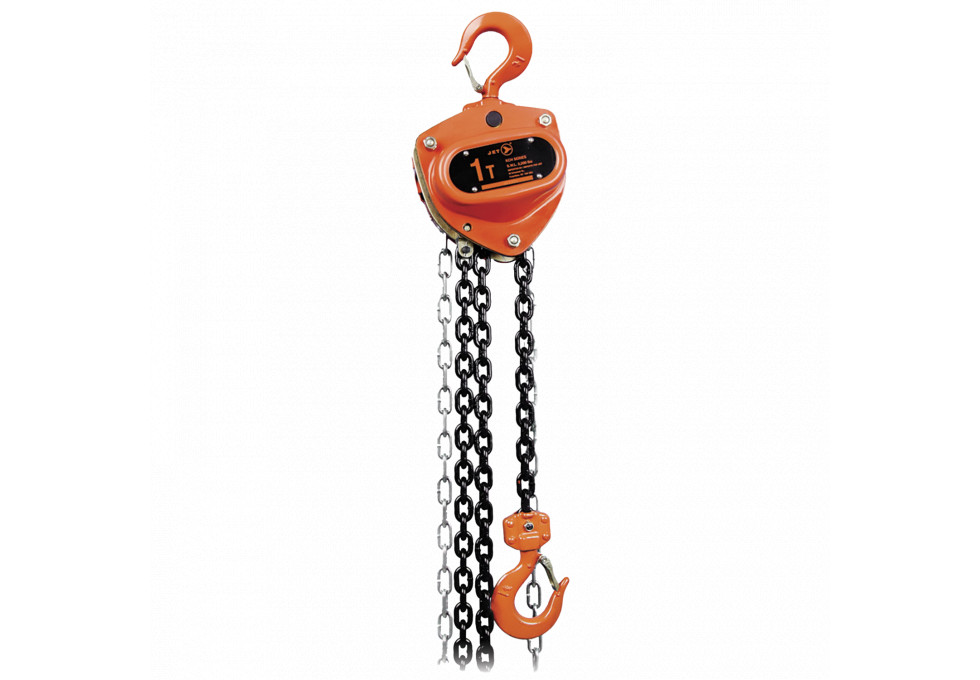

20' Lift - Heavy Duty KCH Series Chain Hoist - 1 ton
- Triple spur geared for efficient operation
- Maintenance free sealed bearings reduce operator effort

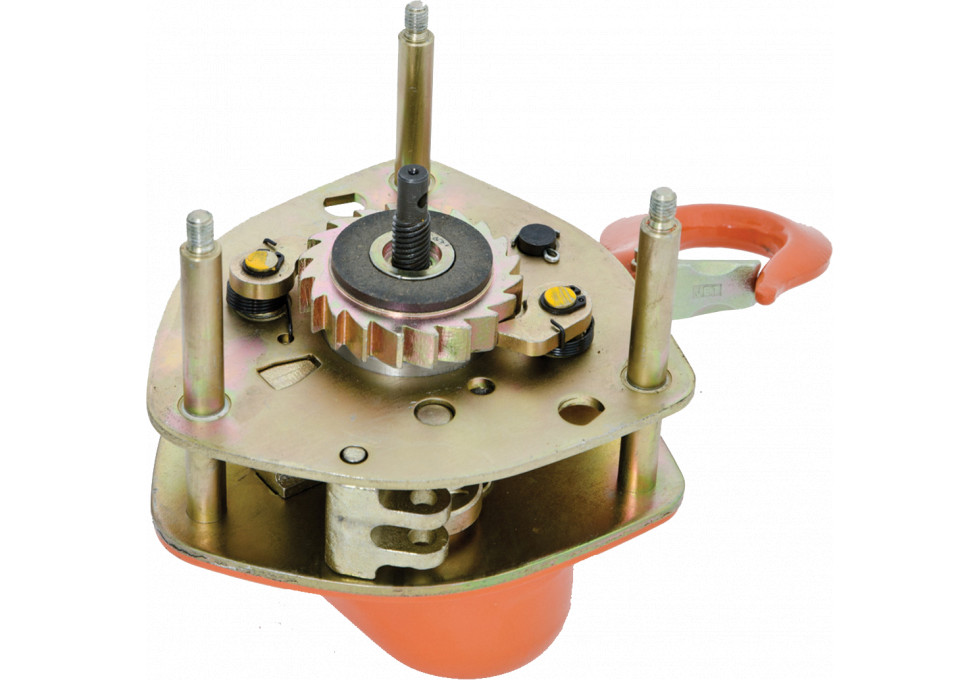

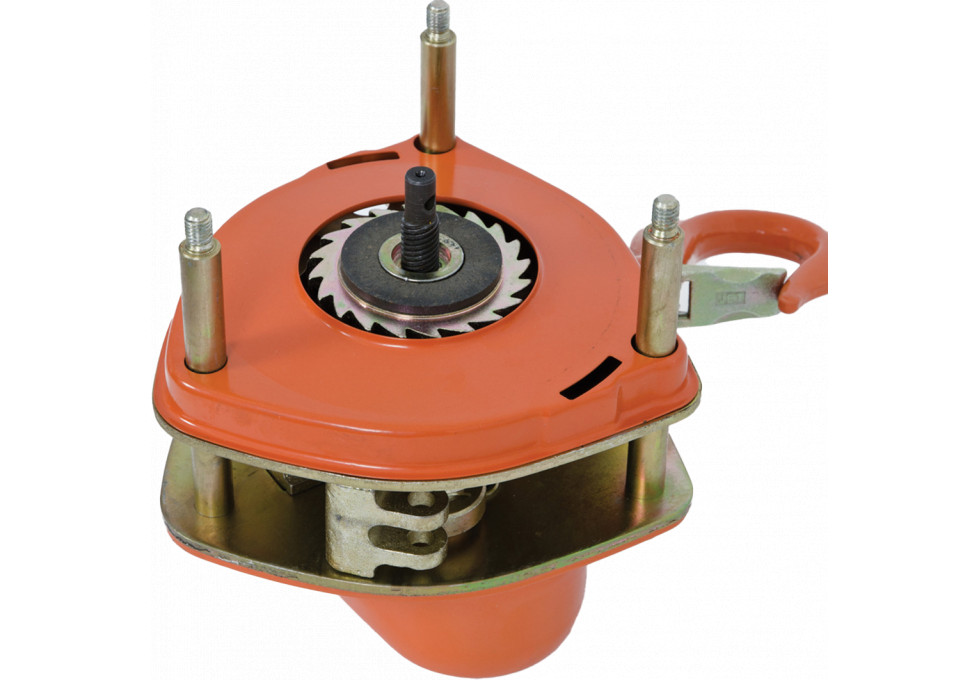

- Dual pawl Weston style brake with extra heavy pawl springs for safe reliable operation
- Extra thick ratchet gear protects brake disc from contamination
- Exclusive premium grade, non-asbestos brake discs for longest life
- Grade 100 load chain for greater strength
- Top and bottom safety hooks bend slowly to warn of overloads
- Cast safety latches exceed industry standards
- Specialized finish on key internal parts for superior corrosion resistance
- Load tested to 150% of rated capacity with certificate
- Meets ASME B30.16 standards
- ISO 9001-2000 certified factory
- Rated Lifting Capacity : 1 T
- Rated Lifting Capacity : 2,200 lb
- Standard Lift : 20'
- Head Room : 11-5/8"
- Number of Falls : 1
- Load Chain Diameter : 6.3 mm
- Force Req. to Lift Capacity : 64 lb
- Length of Hand Chain Pulled to Lift Load 1' : 43'
Product Specifications

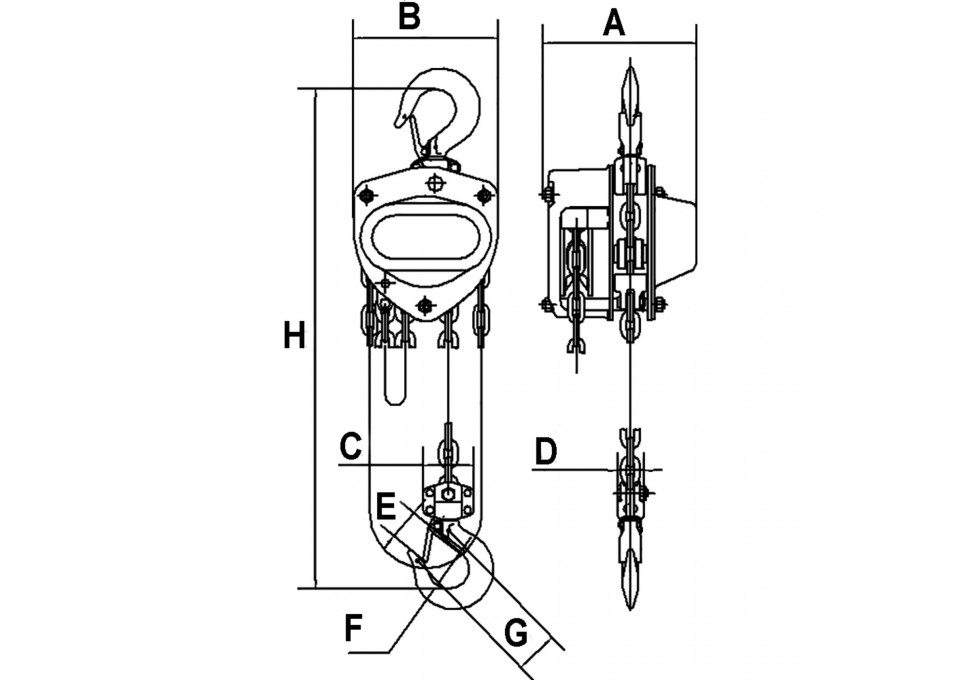

| Vendor Part #: | 101116 |
| A: | 6-5/16" |
| B: | 6-5/16" |
| C: | 2" |
| D: | 1-1/8" |
| E: | 33 mm |
| F: | 40 mm |
| G: | 45 mm |
| H: | 11-5/8" |
| Head Room: | 11-5/8" |
| Load Chain Diameter: | 6.3 mm |
| Number of Falls: | 1 |
| Certification: | ISO 9001-2000 certified factory|ASME B30.16 standards |
| Sku Product Number: | 101116 |
| Capacity (T): | 1 T |
| Duty Level: | Heavy Duty |
| Special Features: | Non-asbestos brake discs |
| Capacity (lb.): | 2,200 lb |
| Force Required to Lift: | 64 lb |
| Length of Hand Chain Pulled to Lift Load to 1': | 43' |
| Lift (ft.): | 20' |
| Load Chain Grade: | 100 |
