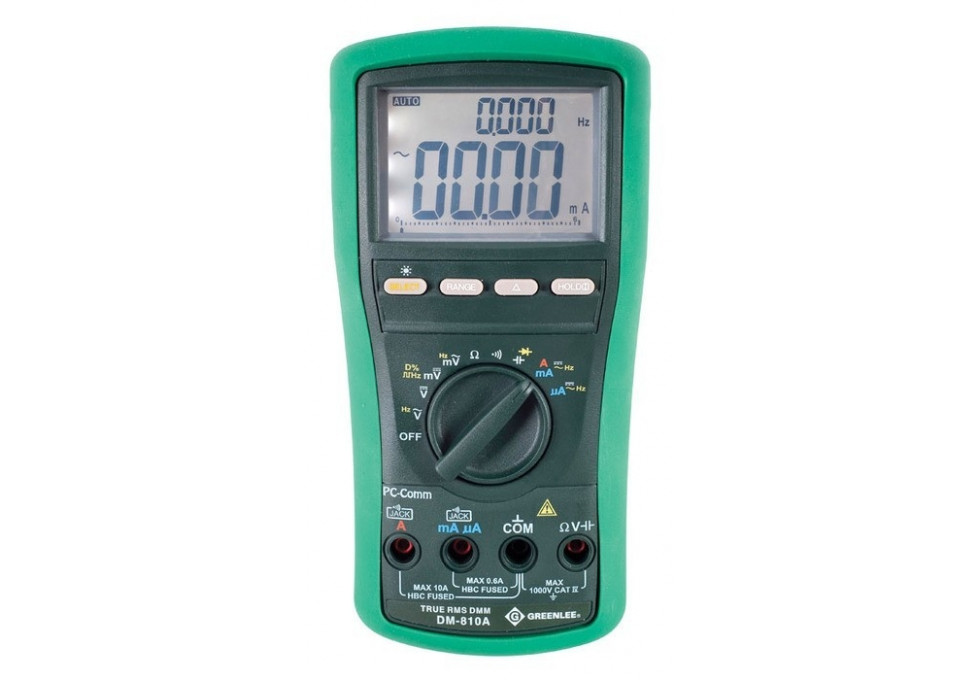

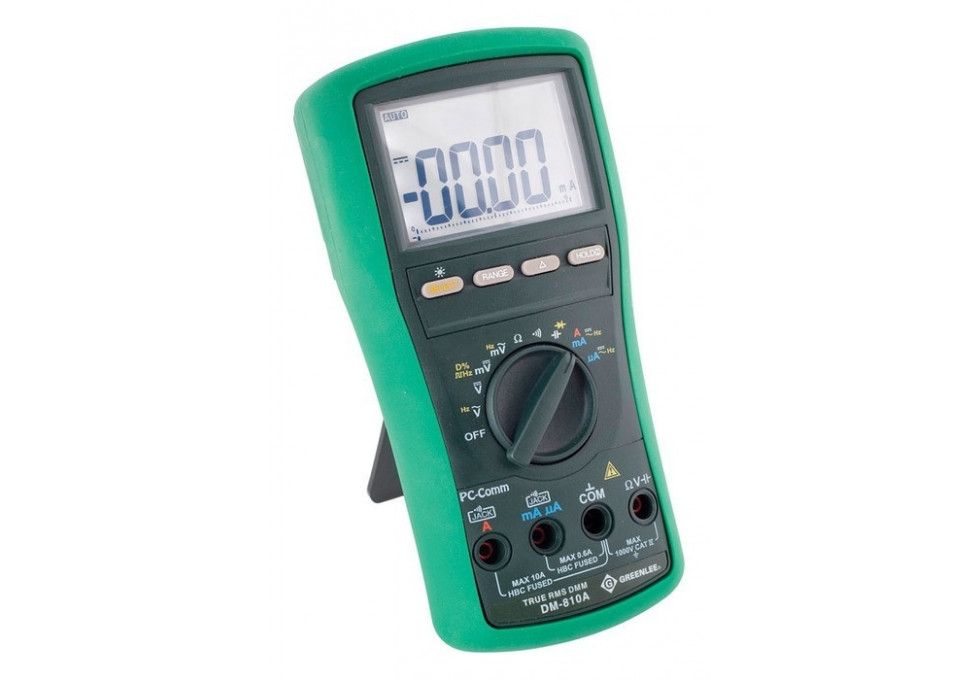

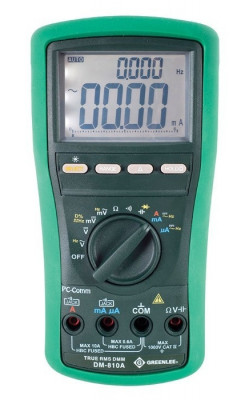

Greenlee 10,000-Count Digital Multimeter, 1000V, 10A (DM-810A)
Digital - True RMS for no-compromise accuracy - Measures voltage, current,resistance, capacitance and frequency
10,000-Count Digital Multimeter, 1000V, 10A (DM-810A)
Digital - True RMS for no-compromise accuracy - Measures voltage, current,resistance, capacitance and frequency
Product #: GREDM-810A
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Greenlee - a Textron Company, provides high quality tools for installing wire and cable.
No customer reviews for the moment.
Product Description
The Greenlee 10,000-Count Digital Multimeter, 1000V, 10A (DM-810A). DMM,TRMS,AC/DC,CAP(DM-810A)
Build
- True RMS for no-compromise accuracy
- Measures voltage, current,resistance, capacitance and frequency
- Tests continuity and diodes
- Backlit LCD with dual 10,000 count displays
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements
Approximate Item/Package Dimensions in inches
- Width: 8.100
- Height: 4.500
- Length: 11.950
Approximate Item/Package Weight in pounds
- Weight: 2.335
Product Specifications
| Vendor Part #: | DM-810A |
| Spec 1: | Amperage Measurement : 600, 6000μA; 60, 600mA; 6, 10A |
| Spec 2: | Battery : (1) 9 V |
| Spec 3: | Capacitance : 60, 600nF; 6, 60, 600μF; 6, 25 mF |
| Spec 4: | Conductance : 99.99 nS |
| Spec 5: | Display : Backlit LCD With Dual 10,000 Count |
| Spec 6: | Frequency Measurement : 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave |

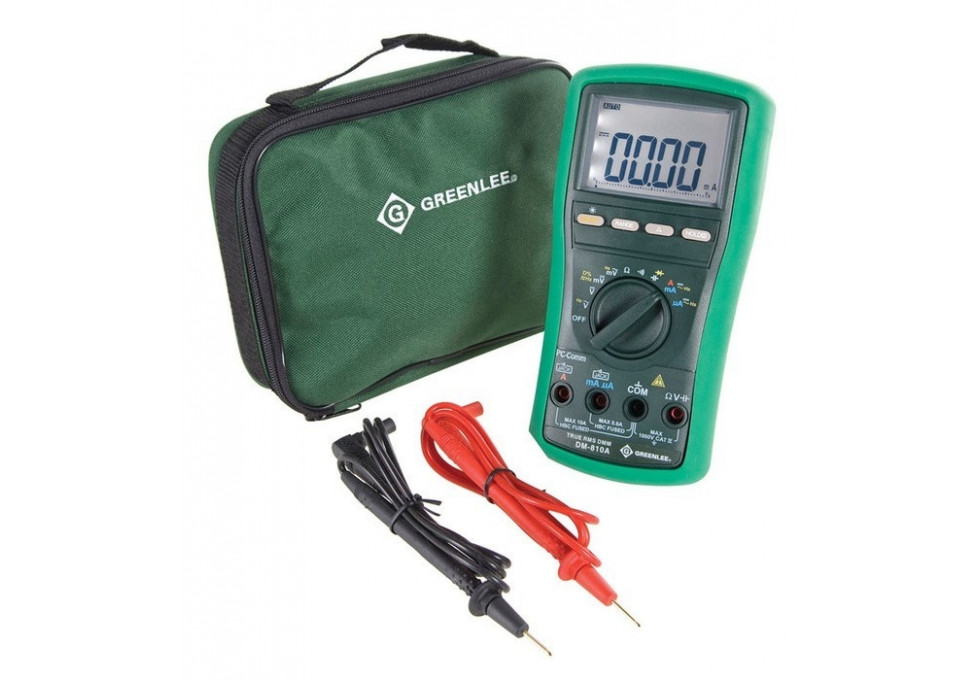

| Spec 7: | Includes : (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case |
| Spec 8: | Measurement Category : CAT IV, 1000 V |
| Spec 9: | Replacement Part : TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A) |
| Spec 10: | Resistance Measurement : 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Spec 11: | Standard : CAT IV, C/UL US Listed, TRUE RMS, CE Listed |
| Spec 12: | Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) |
| Spec 13: | Type : Digital |
| Spec 14: | Voltage Measurement : 60, 600 mV, 9.999, 99.99, 999.9 V |
