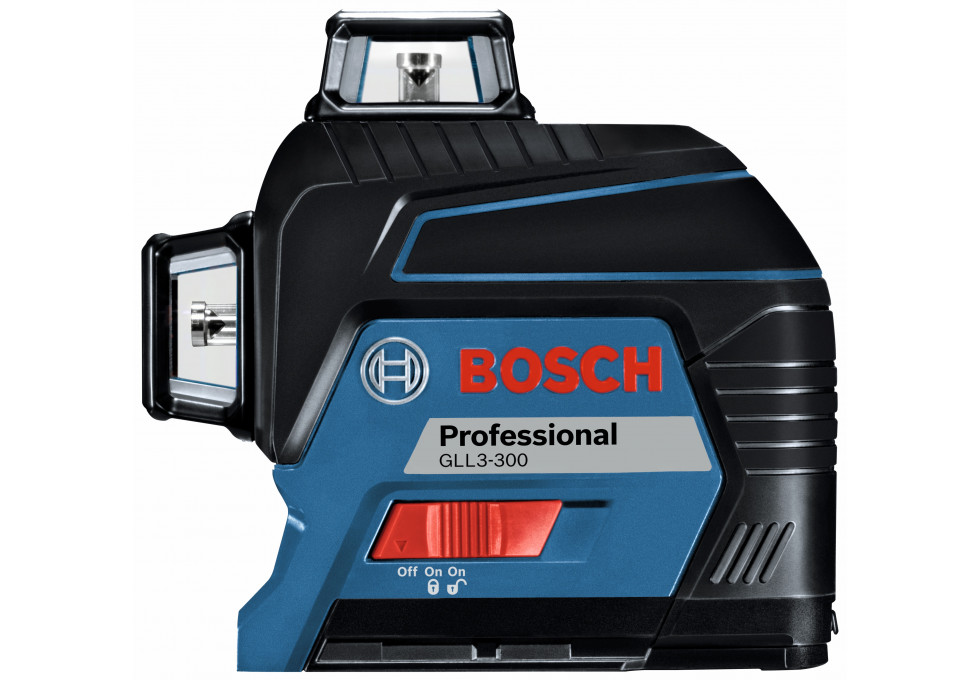

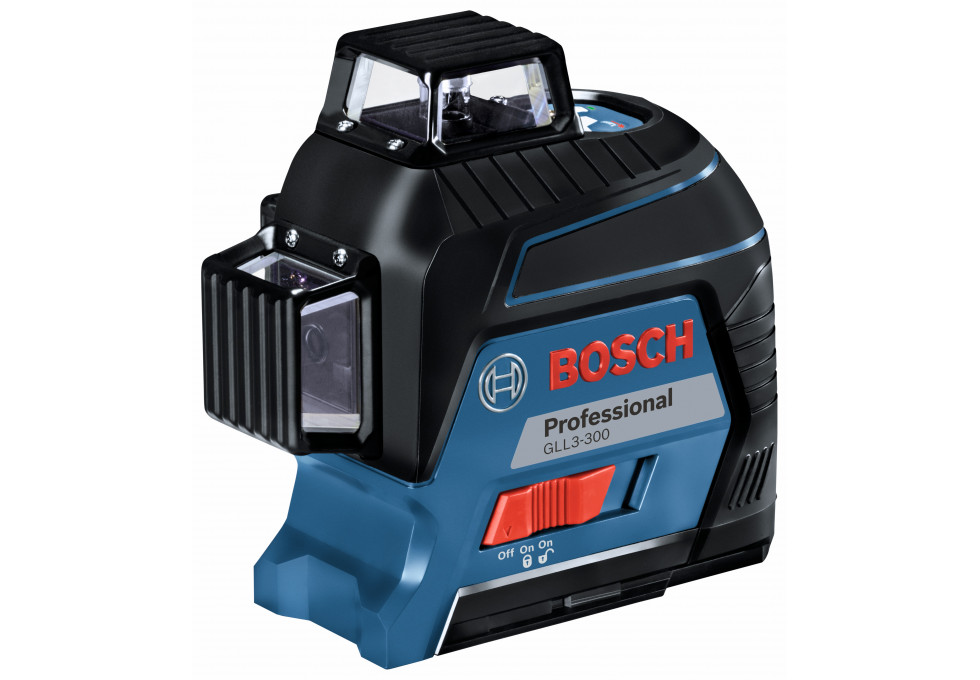

The Bosch 360⁰ Three-Plane Leveling and Alignment-Line Laser. The Bosch GLL3-300 360° Three-Plane Leveling and Alignment-Line Laser features an all-in-one level and alignment solution. This leveling laser provides fast one-spot job setup. It allows users to line up level, align, square and plumb with one setup point by generating three 360° laser planes – one horizontal and two vertical. Featuring an upgraded diode with a brighter beam than previous generation lasers, the GLL3-300 has a visible range of up to 200 Ft. diameter. The leveling laser features pulse mode, extending the working range up to 300 Ft. diameter and/or in bright lighting, using the optional LR8 receiver or LR 6 receiver. The VisiMax™ Technology drives maximum line visibility, and the robust over-molded construction withstand rainy or dusty jobsite conditions. The included BM1 positioning device clips to multiple surfaces and provides quick and easy setup.

---

Build

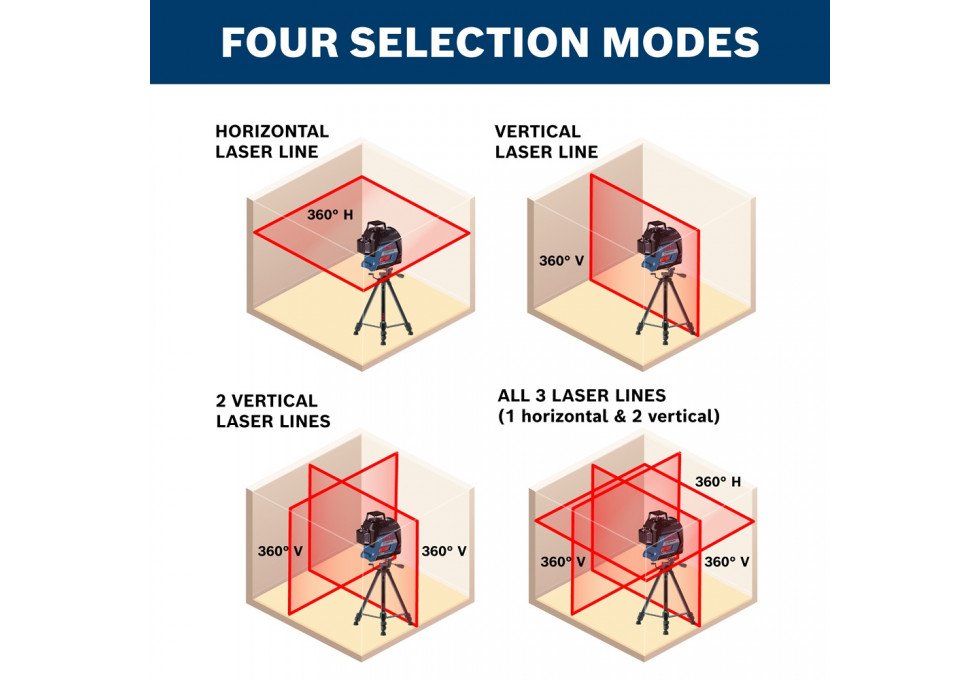

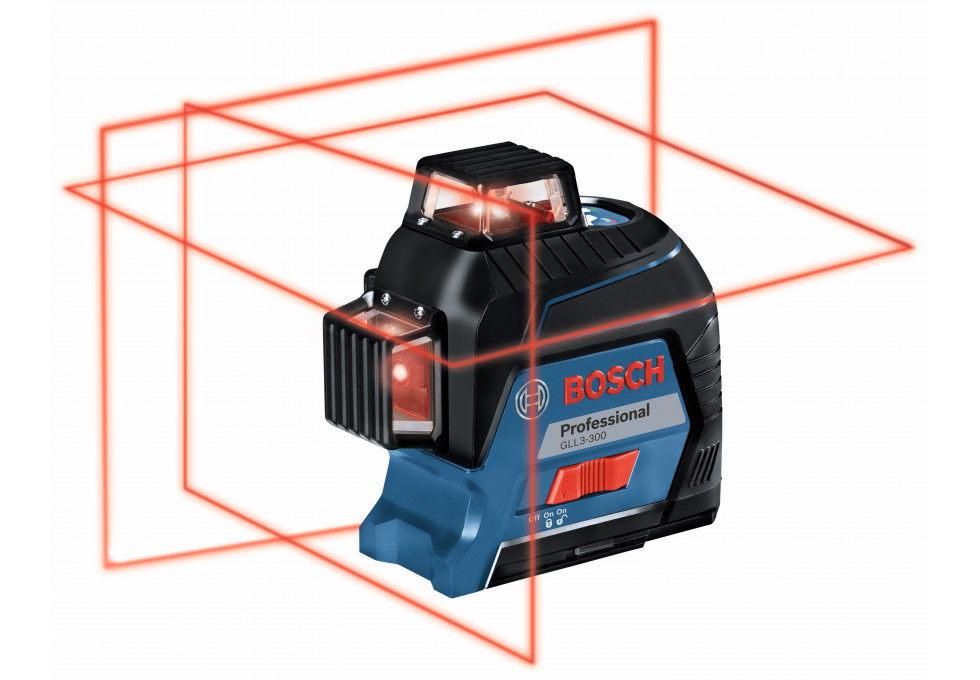

• Complete level and alignment laser – quickly arranges and squares room layout with three chalk lines in 360° laser planes
• Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life
• Upgraded diode with a brighter beam – delivers a visible range of up to 200 Ft. diameter
• Pulse mode – extends the working range up to 300 Ft. diameter and/or in bright lighting, using an optional LR8 or LR 6 receiver
• BM1 positioning device – clips to multiple surfaces, stands on floor with retractable feet and mounts to drywall or wood with screws for quick and easy setup
• Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°
• Manual mode – locks lines for use at any angle
• Robust over-molded construction – IP54 ensures splash water/dust protection for years of dependable operation

---

Approximate Item/Package Dimensions in inches

• Width: 11.15
• Height: 5.75
• Length: 19

Approximate Item/Package Weight in pounds

• Weight: 7.5

---

This Product Comes With

• (1) GLL3-300 360⁰ Three-Plane Leveling and Alignment-Line Laser
• (1) BM1 Positioning Device
• (1) Laser Target
• (4) AA Batteries
• (1) Heavy-Duty Pouch
• (1) Hard Carrying Case
