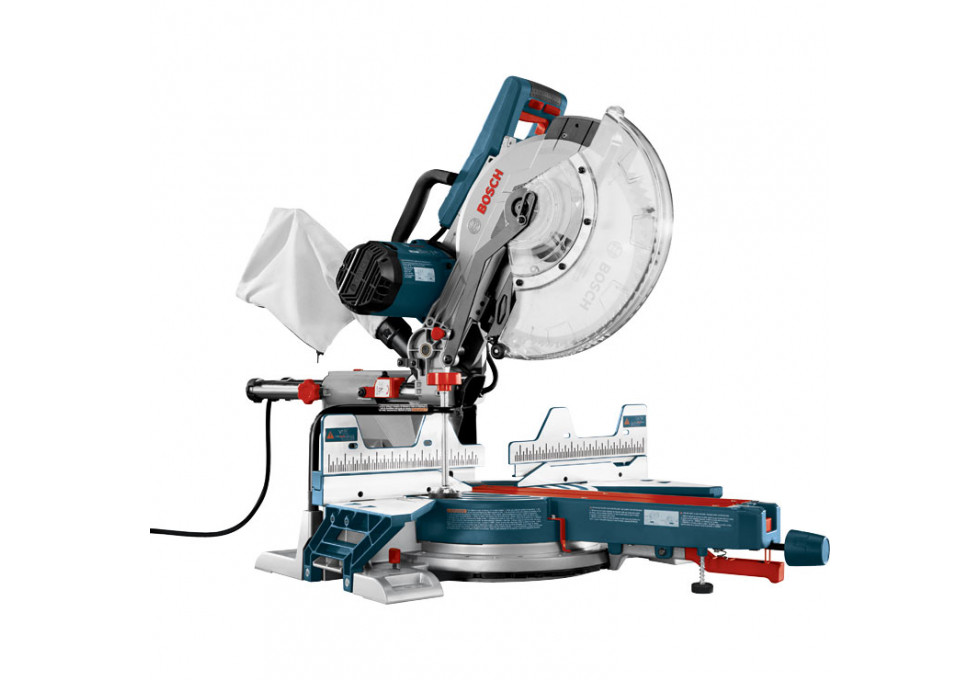

The Bosch 12 In. Dual Bevel Slide Miter Saw. Quick and easy bevel settings without having to reach behind the saw. Greater cutting capacity delivers more versatility because many times the user never knows what"s required in the next cut. The only compound miter saw available with integrated base extensions that support the workpiece and make transportation easier. Bosch exclusive quick select turret bevel stop system offers common stops at 22.5?, 33.9?, 45?, 47?. Tall 4-3/4 In. fence design supports wide material for accurate cuts.

Features

• All-metal bevel lock lever located on bevel post for quick and easy bevel settings without reaching behind the saw
• Crown chop lock positions head in place for maximum chop cutting capacity for upright base molding and nested crown
• Integrated base extensions extends material support up to 40 inches
• Two tall 4.75 inch sliding fences for easy bevel cut set-up
• Consistent and precise miter angles over the life of the tool with 10 wedge and slot miter detents 0°, 15°, 22.5°, 31.6°, 45° left right, 60° right
• Large easy-to-read dual-bevel and miter scales for easy setting of accurate bevel and miter angles; 0-47° left and right
• Easy bevel detent turret system 22.5°, 33.9°, 45°, 47° for quick and accurate bevel cuts
• Adjustable front stabilizing foot maintains saw stability when performing slide cuts
• Easy-to-adjust depth-of-cut stop allows for quick and easy non-through cuts or notching
• Electric brake for quick, repetitive cuts; stops blade in seconds
• Cord wrap for easy set-up and breakdown
• Click and clean system is easy adaptable to 35mm and Bosch click vacuum system

Specifications

	Amperage		15.0
	Bevel Angle Range		47° left and 47° right
	Bevel Stops		0°, 22.5°, 33.9°, 45° (Right/Left)
	Blade Diameter		12.0
	Case Type		No Case Included
	Dust Collection		Yes
	Length		33.5"
	Miter Angle Range		52° Left, 60° Right
	Miter Detents		0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
	Miter Positive Stops		0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
	No Load RPM		4,000
	Voltage		120V
	Weight		65.0lb
	Width		24.0"

Includes

• 60-Tooth Blade
• Material Clamp
• Dust Bag

---

Approximate Item/Package Dimensions in inches

• Width: 22.25
• Height: 24
• Depth: 34

Approximate Item/Package Weight in pounds

• Weight: 74
