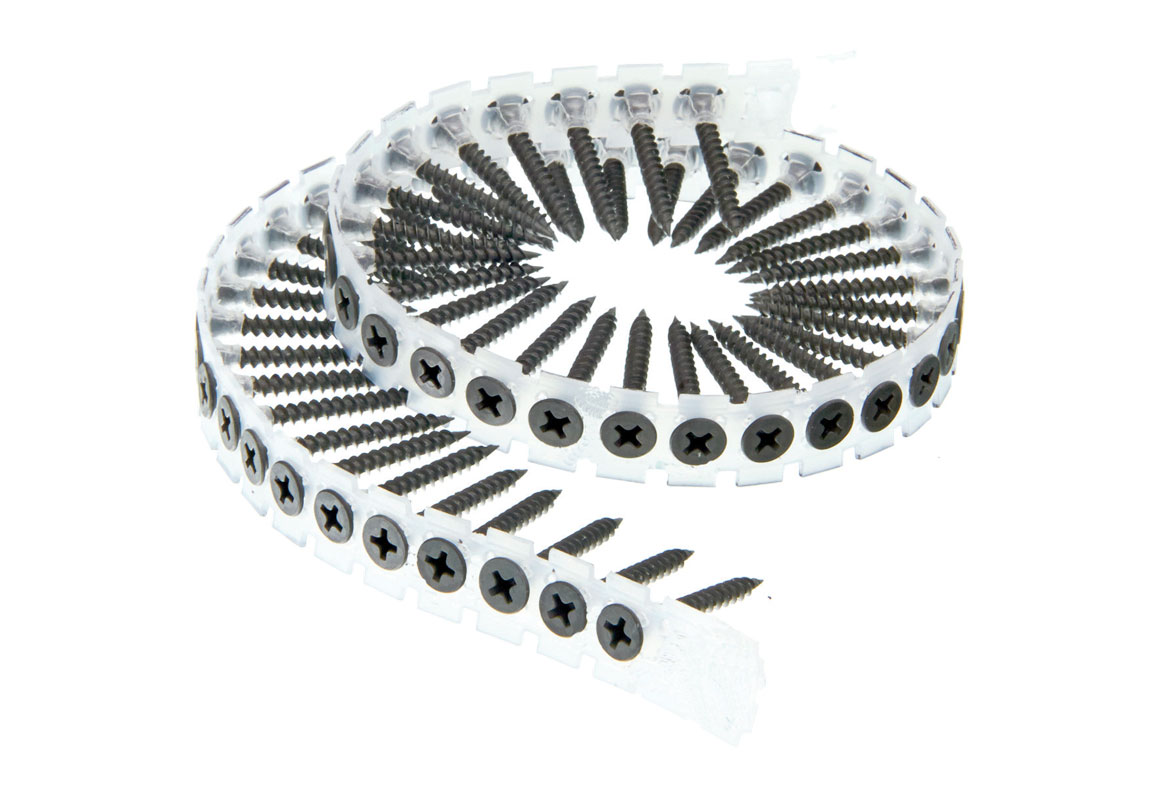

Senco Collated Drywall Screw - #6 - Phillips / GRAY PHOSPHATE
INTERIOR - Drywall to Steel Studs - Bugle Head - Sharp Point - Double Thread - Phillips Drive - For attaching drywall to 25-20 gauge steel studs
Collated Drywall Screw - #6 - Phillips / GRAY PHOSPHATE
INTERIOR - Drywall to Steel Studs - Bugle Head - Sharp Point - Double Thread - Phillips Drive - For attaching drywall to 25-20 gauge steel studs
Product #: SEN06B125P
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: DIA.: #6; Length: 1-1/4"; Pkg: Jug 1000
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for price & availability : 403-342-6030
QTY:
BUY DIRECT
Product Description
Sharp Point Drywall Screw
STEEL – HEAT TREATED
✔ Gray Phosphate
*Jug or Bulk
Self tapping screw for attaching Gypsum board to 25-20 gauge steel studs!
Build
- Phillips recess provides smooth engagement with moderate torque transmission
- Bugle head provides consistent penetration without damaging the paper
- Double threads provide improved holding power and thread forming capability when driving into steel
- Ultra sharp point quickly penetrates steel reducing drive time
- Gray phosphate is an economical rust inhibitor meant for interior applications only
- ICC approval information available in ESR 3558
Installation Notes
- Use a screwdriver with a torque controlled or precise depth-sensitive clutch and speeds of up to 5000 RPM
- Over-driving may cause a weak connection or thread strip-out of the steel
- The drive is finished when the screw is just below the work surface without tearing the paper
- Three full threads must extend past the base metal for an acceptable connection
Fastener Properties
Certifications
| ASTM B117 Salt Spray Test |
Technical Specifications
| Ultimate Tensile (lbs) | Torsinal Strength (lbs-in) |
| 603 | 35 |
- Bugle Head: The bugle head is a drywall-style flat top with smooth radius under head. It's used mainly in drywall applications.
- Drywall Screw: A drywall screw is self-tapping fasteners usually built with a Phillips drive into a bugle head, and are intended to attach drywall to wood or metal studs.
- Collated Screws: Collated Screws are fasteners connected together with holding strip. They're built to work in conjunction with a collated screw gun system to drive the fastener into a hard surface. These screws are usually used in drywall installation, deck building, framing and more.
Product Specifications
| Vendor Part #: | 06B125P |
| Color: | Black |
| Screw Drive Type: | Phillips |
| Finish: | Grey Phosphate |
| Head Diameter: | 0.32 inches |
| Head Height: | 0.18 inches |
| Head Type: | Bugle |
| Material: | Steel |
| Point Type: | Sharp Point |
| Screw Gauge: | #6 |
| Tensile Strength (max): | 603 lbs |
| Thread Count: | 15 TPI |
| Thread Type: | Double |
| Torsional: | 35 lbs-in |
