Stationary Air Compressor (w/o Acc) - 60 gal - 15 amp / KC-6160V1
Estimated Availability Date:
Call for Availability : 403-342-6030

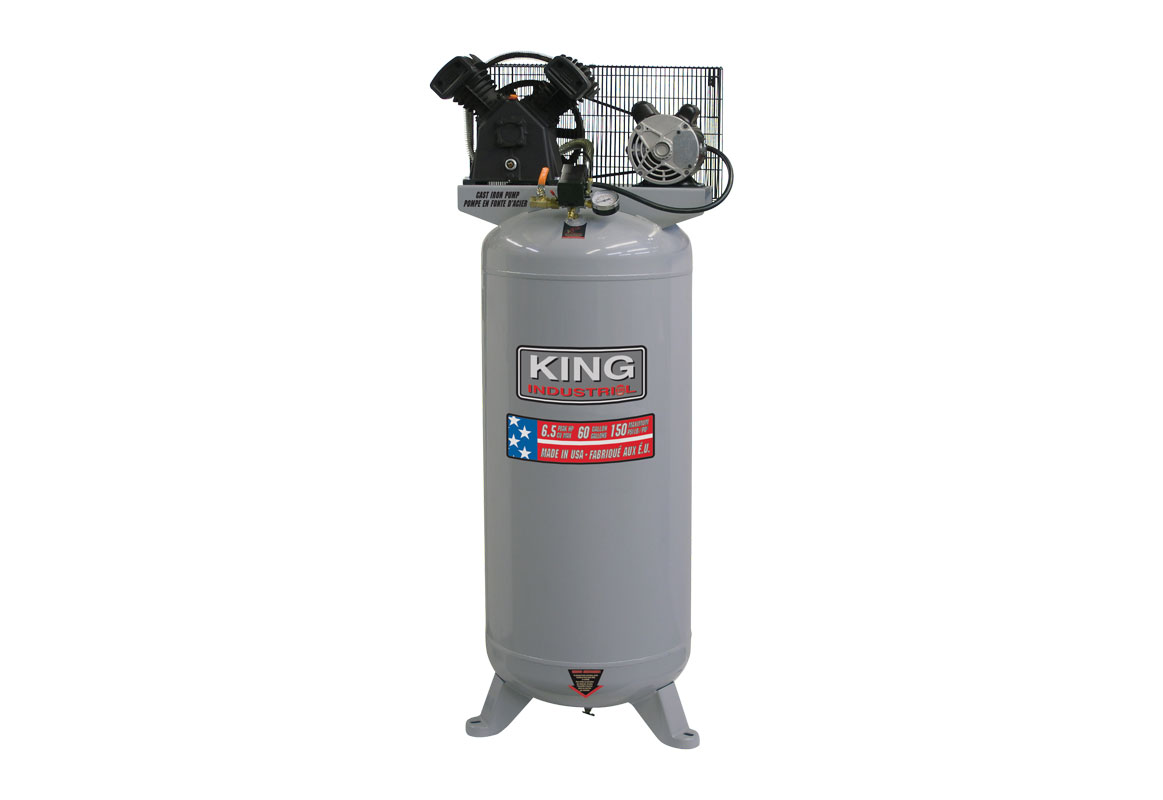

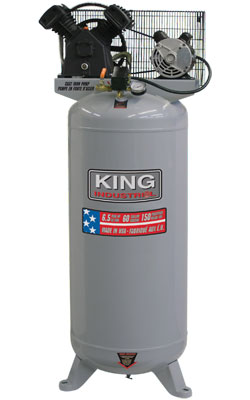

The King Canada 60 Gallon Air Compressor is built to efficiently pressurize air for powering air tools.
Build
This King Canada stationary electric air compressor is built to provide compressed air to power air tools both fast and efficiently.
The 60 gallon tank is ASME registered and provides longer run times and the 2 cylinder cast iron single stage oil lubricated pump is built to last.
Comes with a belt drive with a sturdy enclosed metal guard, high efficiency reed valves, large intake filters, a heavy-duty 1/2” ball valve, an easy to read tank pressure gauge, and a pump with a “V” style design that helps to reduce vibrations as well as improves cooling, extending the compressor’s lifespan.
An efficient way to power your air tools!
Power
Powered by a thermally protected 6.5 HP motor with reset that generates 95-125 PSI and can be adjusted up to 150 PSI.
This unit delivers a 11.2 CFM @ 90 PSI.
Safety
This tank is ASME registered and the safety valve is also ASME.
Certifications, Standards, and Regulations
- ASME Tank and Safety Valve
- Electric Compressor: An electric compressor is driven by an electric engine and is ideal for situations where local power is available. They are less costly and require little maintenance.
- Air Compressor: A machine that puts potential energy into air, using either an electric or gasoline engine, converting the air into pressurized air. This pressurized air can then be used to power pneumatic tools.
| Vendor Part #: | KC-6160V1 |
| Actual FAD-CFM @ 40 PSI: | 13.4 CFM |
| Actual FAD-CFM @ 90 PSI: | 11.2 CFM |
| Amperage Measurement: | 15 amp |
| Application: | Pressurizing Air |
| Height: | 65 inches |
| Horsepower: | 6.5 HP |
| Length: | 27 inches |
| Environment Use: | Indoors |
| Max Air Pressure: | 150 PSI |
| RPM: | 3,450 RPM |
| Tank Size: | 60 gal |
| Voltage: | 208/240V - 1 Phase - 60 Hz |
| Weight: | 260 lbs |
| Width: | 20 inches |
| PSI: | 95 - 125 PSI (150 PSI) |
- √Powering Air Tools
- √Compressing Air
