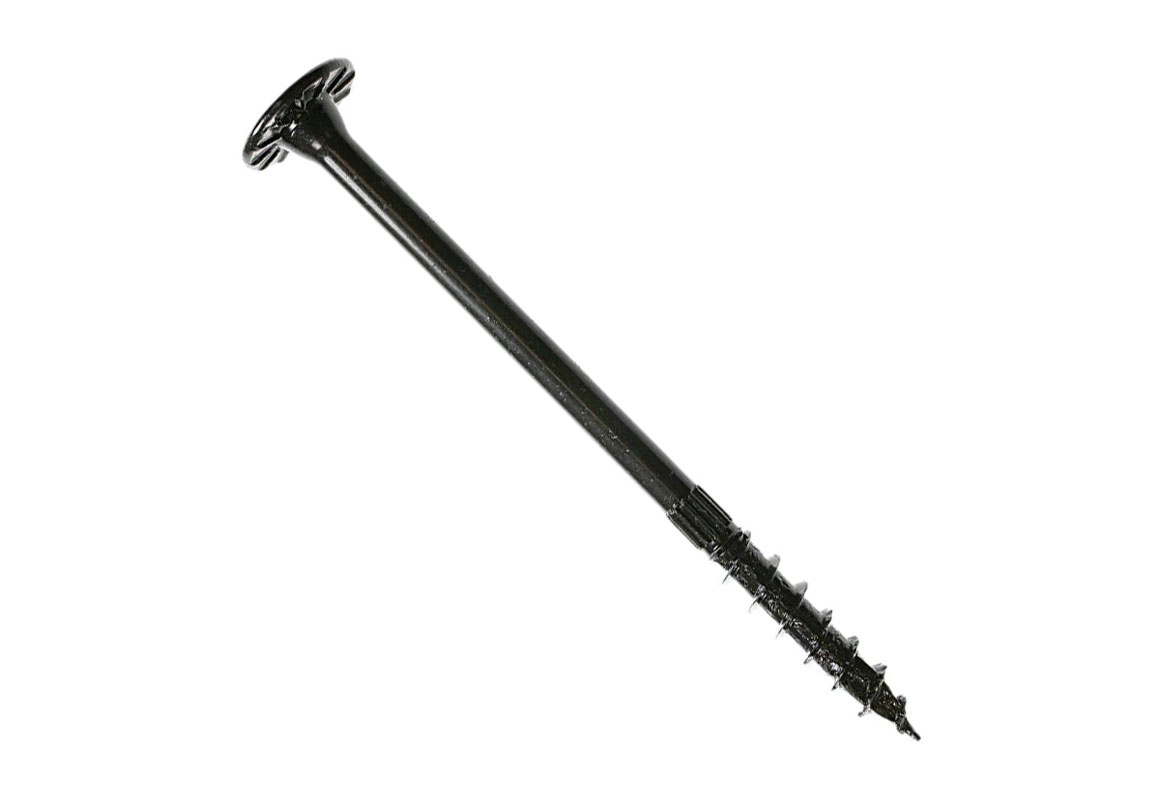

Simpson Strong-Tie Structural Screws - Low Profile - 7/32" x 1-7/16" - Torx / BLACK ELECTROCOATING
STRONG-DRIVE® - T-40 6-Lobe Drive - 1-7/16" Thread Length - SawTooth Point - For fastening multi-ply wood members, such as joining plated trusses and solid sawn lumber
Structural Screws - Low Profile - 7/32" x 1-7/16" - Torx / BLACK ELECTROCOATING
STRONG-DRIVE® - T-40 6-Lobe Drive - 1-7/16" Thread Length - SawTooth Point - For fastening multi-ply wood members, such as joining plated trusses and solid sawn lumber
Product #: SIMSDW22458
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: Length: 4-5/8"
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Product Description
Low Profile Head Structural Wood Screws
SawTooth™ Point
1-7/16" Thread Length
√ STEEL - FOR EXTRA STRENGTH
Black E-Coat® Electrocoating
IAPMO-UES ER-192 / 2012 & 2015 IRC and IBC
HIGH SHEAR LOAD CAPACITIES
- Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
- Optimal screw lengths provide maximum penetration while preventing the point from protruding out the back of the member
- Bold thread design provides superior holding power and cinches fastened members together for consistent installation
- Patented SawTooth™ point ensures fast starts, reduces installation torque and eliminates the need for pre-drilling in most applications
- Deep 6-lobe T-40 recess reduces cam-out, making driving easier
- Structural Screws: Structural screws are built for heavy-duty construction projects. These screws often take the place of other more traditional fasteners and typically have more advanced features.
Product Specifications
| Vendor Part #: | SDW22300 |
| Coating: | E-Coat Electrocoating |
| Color: | Black |
| Diameter: | 7/32 inch |
| Head Diameter: | 3/4 inch |
| Head Type: | Low-Profile |
| Material: | Steel |
| Point Type: | SawTooth |
| Thread Length: | 1-7/16 inches |
