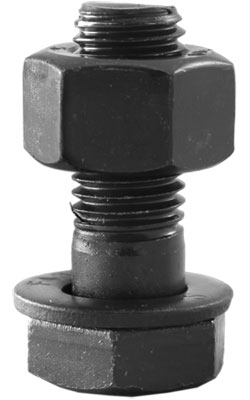

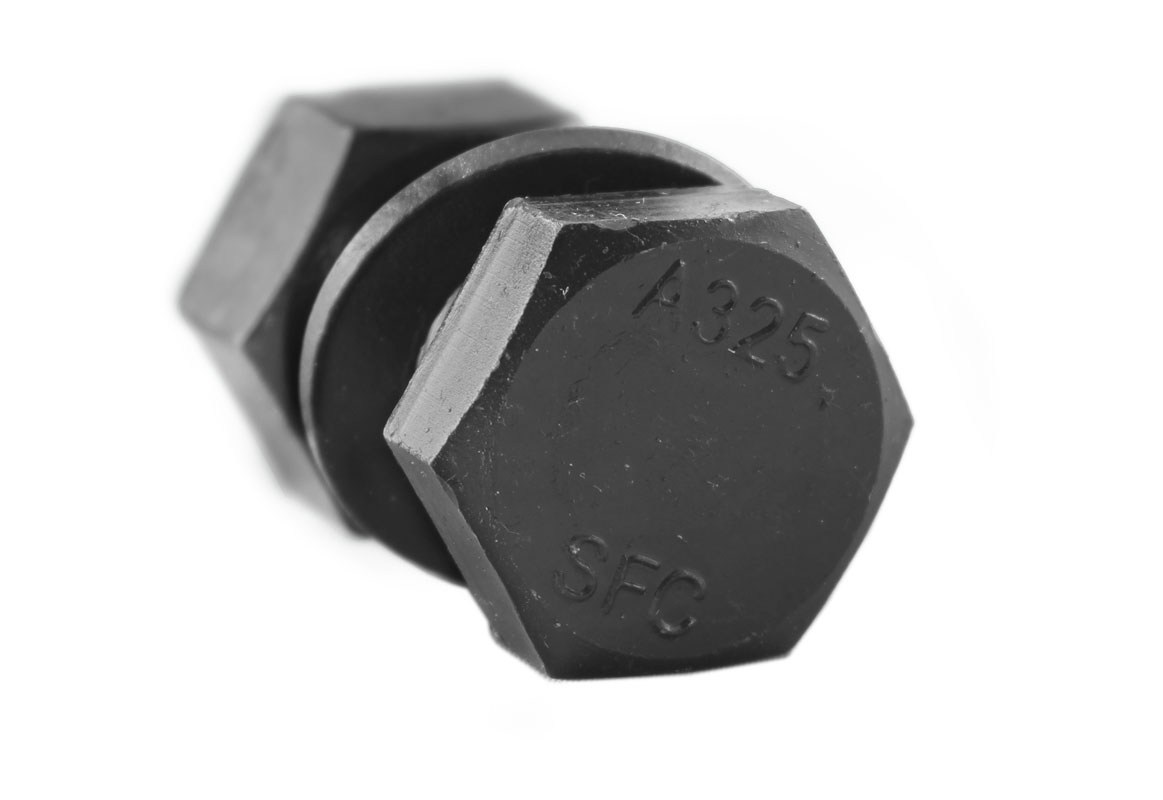

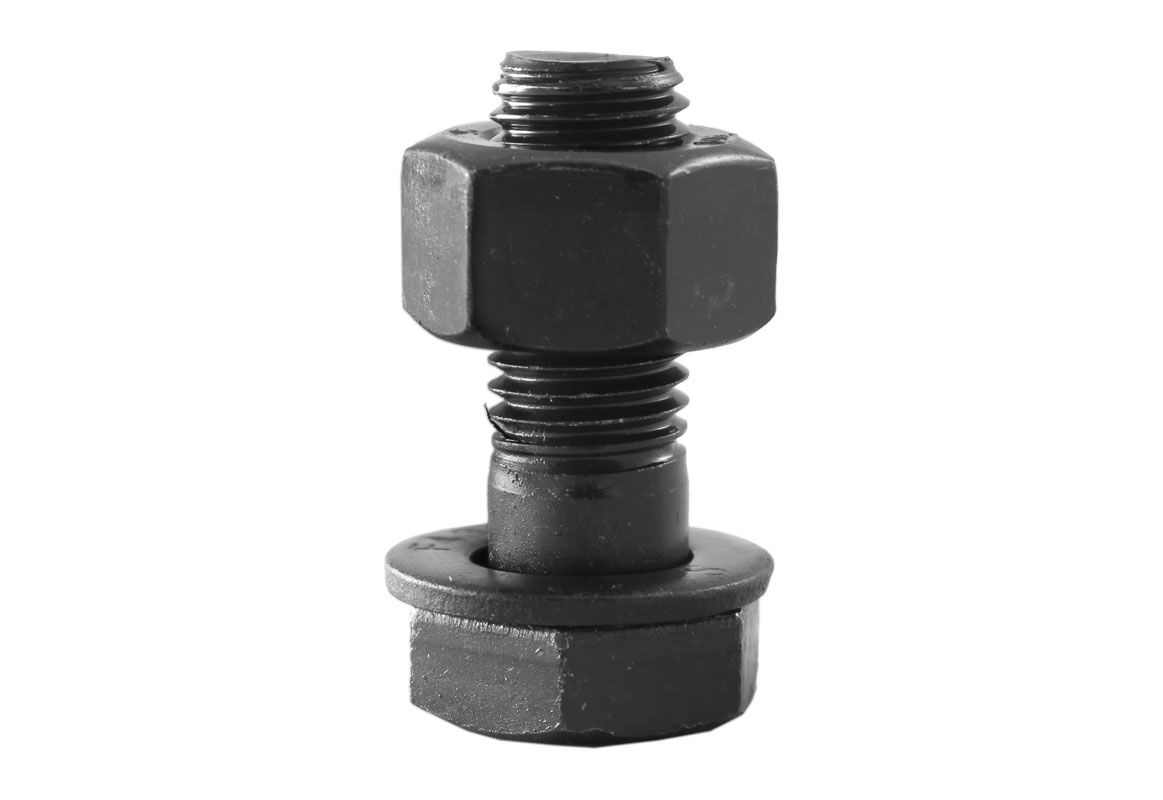

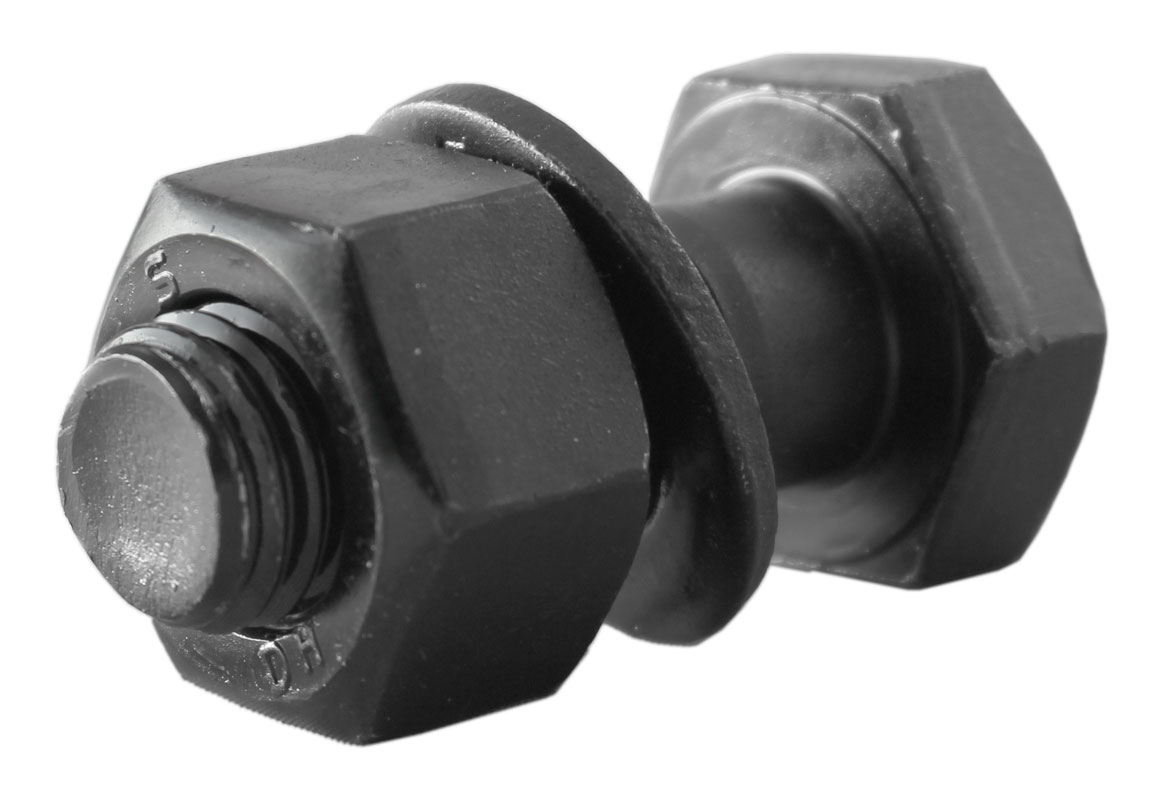

Structural Bolt 7/8" UNC - w/A563 DH Nut / Plain A325
9 thread count / Coarse Thread *ASTM A325 GRADE BOLT / Bare Plain Finish. Unified Standard Class 2A Fit.
Structural Bolt 7/8" UNC - w/A563 DH Nut / Plain A325
9 thread count / Coarse Thread *ASTM A325 GRADE BOLT / Bare Plain Finish. Unified Standard Class 2A Fit.
Product #: SBB014036A325
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: DIA.: 7/8"; Length: 2-1/4"
Info: 9 - UNC
Pls.Call
SBB014036A325 7/8", 2-1/4" 9 - UNC , SoldOut
SBB014040A325 7/8", 2-1/2" 9 - UNC , SoldOut
SBB014044A325 7/8", 2-3/4" 9 - UNC , SoldOut
SBB014052A325 7/8", 3-1/4" 9 - UNC , InStock
$809.99 /100PC
DIA.
Length
Info
PROD #
Price
7/8"
2-1/4"
9 - UNC
SBB014036A325 7/8"
2-1/2"
9 - UNC
SBB014040A325 7/8"
2-3/4"
9 - UNC
SBB014044A325 7/8"
3-1/4"
9 - UNC
SBB014052A325
$809.99 /100PC
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
SBB014036A325 7/8", 2-1/4" 9 - UNC
Call for Availability : 403-342-6030
SBB014040A325 7/8", 2-1/2" 9 - UNC
Call for Availability : 403-342-6030
SBB014044A325 7/8", 2-3/4" 9 - UNC
Call for Availability : 403-342-6030
SBB014052A325 7/8", 3-1/4" 9 - UNC
$809.99 /100PC
SBB014032A325 7/8", 2" 9 - UNC
Call for Availability : 403-342-6030
SBB014048A325 7/8", 3" 9 - UNC
Call for Availability : 403-342-6030
SBB014056A325 7/8", 3-1/2" 9 - UNC
Call for Availability : 403-342-6030
SBB014060A325 7/8", 3-3/4" 9 - UNC
Call for Availability : 403-342-6030
SBB014064A325 7/8", 4" 9 - UNC
Call for Availability : 403-342-6030
SBB014072A325 7/8", 4-1/2" 9 - UNC
Call for Availability : 403-342-6030
SBB014088A325 7/8", 5-1/2" 9 - UNC
Call for Availability : 403-342-6030
DIA.
Length
Info
PROD #
Price
7/8"
2-1/4"
9 - UNC
SBB014036A325 7/8"
2-1/2"
9 - UNC
SBB014040A325 7/8"
2-3/4"
9 - UNC
SBB014044A325 7/8"
3-1/4"
9 - UNC
SBB014052A325
$809.99 /100PC
Product Description
Hexagonal Head Structural Bolts are Built for use in Large Structures, such as Buildings and Bridges.
Each Structural Bolt INCLUDES a Flat Washer & A563 Heavy Hex Nut.
Constructed for loads of steel-to-steel structural connections!
STEEL - FOR EXTRA STRENGTH
√ QUENCHED AND TEMPERED
Bare Plain Finish
ASTM A325
MEDIUM CARBON STEEL
- Made to the dimensional requirements of I.F.I. Standard Hex.
- Heavy Hex Structural Bolts (B18.2.6)
TENSILE STRENGTH (PSI)
- Up to 1” dia. inclusive 120,000 PSI
- Over 1” to 1-1/2” inclusive 105,000 PSI
Product Specifications
| Vendor Part #: | 014040A325 |
| Diameter: | [7/8 inch] |
| Grade: | A325 |
| Head Type: | Hex |
| Material: | Medium Carbon Steel |
| Plating: | Bare / Plain |
| Tensile Strength (minimum): | [120000 psi] |
| Thread: | UNC |
| Wrench Size: | [1-7/16 inches] |
- √Steel-to-Steel Structural Connections
