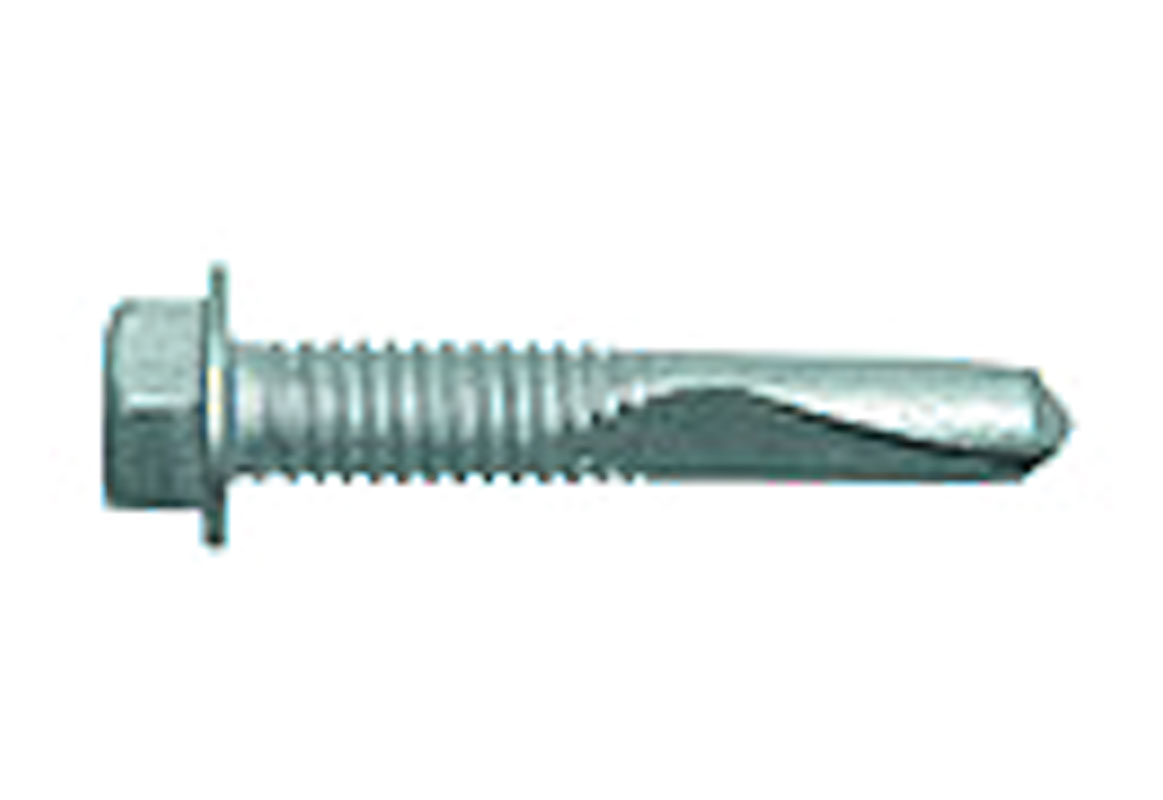

ITW Buildex Hex Washer Head 12-24 x 1-1/4" TEKS® Self-Drilling Fasteners / Climaseal® Coating
Heavy duty steel-to-steel applications - integrated drill point & tapping threads - Heavy duty load bearing areas
Hex Washer Head 12-24 x 1-1/4" TEKS® Self-Drilling Fasteners / Climaseal® Coating
Heavy duty steel-to-steel applications - integrated drill point & tapping threads - Heavy duty load bearing areas
Product #: BUI1670
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: Gauge: #12; Length: 1-1/2"
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Product Description
The Buildex TEKS® Self-Drilling Fasteners are ideal for metal deck applications to structural steel or bar joists.
They're built with an integrated drill point and tapping threads for a quick transition from drilling to tapping with lower installation torque.
You can use these fasteners for heavy duty load bearing areas. They attach up to 7.2" of material, including 1/2" steel.
They come with liner panels and accessories to structural steel or bar joist.
Longer length fasteners can be used in retrofit clip and sheet applications.
Drill Point
They're made with Teks' drill point, so you can drill with no walking, cutting edges, and pigtail reduction.They're built with an integrated drill point and tapping threads for a quick transition from drilling to tapping with lower installation torque.
Drilling
These fasteners engage material faster, drill with less effort, and safer installation.You can use these fasteners for heavy duty load bearing areas. They attach up to 7.2" of material, including 1/2" steel.
They come with liner panels and accessories to structural steel or bar joist.
Features
The Climaseal® coating provides long life protection, which means fewer replacements.Longer length fasteners can be used in retrofit clip and sheet applications.
- Hex Washer Head: The Hex washer head has an indented hex top with built in washer. It's very useful for metal to wood fastening, such as fastening roofing panels to wood structures.
- Metal Screw: A metal (or sheet metal) screw is often notched a the tip to aid in chip removal during thread cutting. It's also built with sharp threads to be able to cut into materials such as sheet metal, plastic, or wood.
- TEK® Screw: A TEK® screw is a fastener built to drill or carve holes then tap threads in various materials.
Product Specifications
| Vendor Part #: | 1670 |
| Box Qty.: | 4000 |
| Certification(s) / Agency Approval(s) / Compliance: | FM Approved - J.I. 2 X 9A2 AM |
| Coating: | Climaseal® |
| Color: | Clima Gray |
| Head Diameter: | [5/16 inch] |
| Head Type: | Hex Washer |
| Material: | Carbon Steel |
| Peak Torque: | [100 in./lbs.] |
| Screw Gauge: | #12 |
| Tensile Strength (average): | [3020 lbs.] |
| Thread Count: | 24 |
| Thread Type: | Standard |
- √for Bar Joists
- √for Metal Deck Applications
- √for Structural Steel Joists
