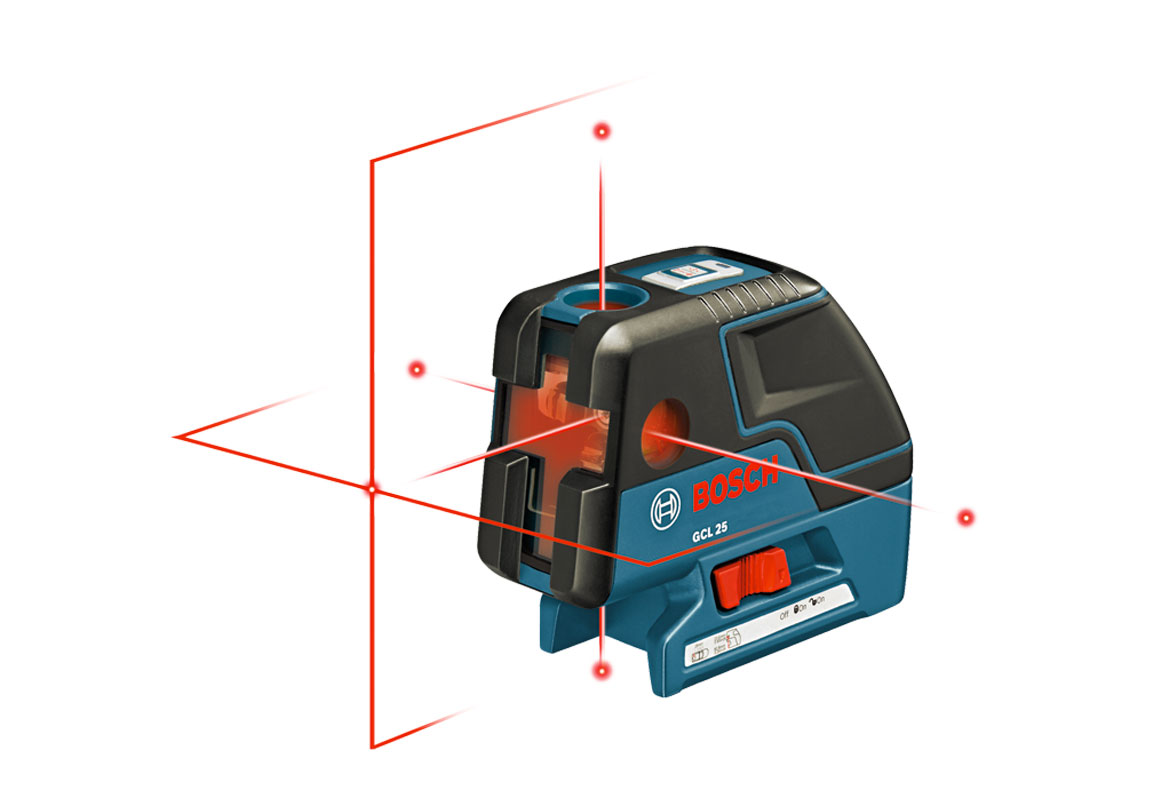

The BOSCH 5-Point Self- Leveling Alignment Laser with Cross-Line Kit delivers two-in-one versatility for power users who perform a variety of tasks involving squaring, plumbing, and leveling. You no longer need two tools to square a room for walls or transfer points for ceiling installations!
The leveling laser has a smart pendulum leveling system that self-levels and indicates out-of-level, and it locks at any angle in manual mode, leaving your hands free to quickly complete layout.
The included positioning device (BM1) provides a Microfine Height Adjustment System for quick adjustment.
You have the selection of four modes: 5-point, horizontal line, vertical line, or cross-line modes.
There are highly visible laser points and lines for horizontal leveling, vertical alignment, squaring, layout, and plumb point transfer.
It has a plumb range of 15', a horizontal point range of 100' and a lines range of 30'.
The following is included with the kit:
- Positioning Device for Line and Point Lasers (BM 1)
- L-Boxx 2
- Laser Target
- Belt Pouch
- (4) AA Batteries
Vendor Part #: | GCL25 |
Battery Requirements: | [4 AA] |
Battery Voltage: | [1.5 V] |
Cross Line Accuracy at 30 ft.: | ± [1/8 inch] |
Laser Class: | Class 2 |
Laser Diode: | [635 nm] to [670 nm] |
Length: | [17.5 inches] |
Leveling Type: | Self-Leveling, Up to 4° |
Material: | Durable plastic with overmold in key impact areas |
Mount Threading: | [1/4 inch] - [20] & [5/8 inch] - [10] |
Operating Temperature Range: | [14 degrees Fahrenheit] to [22 degrees Fahrenheit] |
Point Accuracy at 30 ft.: | ± [1/4 inch] |
Range - With Cross Lines: | Up to [30 ft.] |
Range - With Horizontal Points: | [100 ft.] |
Range - With Plumb Points: | Up to [15 ft.] |
Weight: | [1.10 lbs.] |
- √for Ceiling Installation
- √for Wall Building
