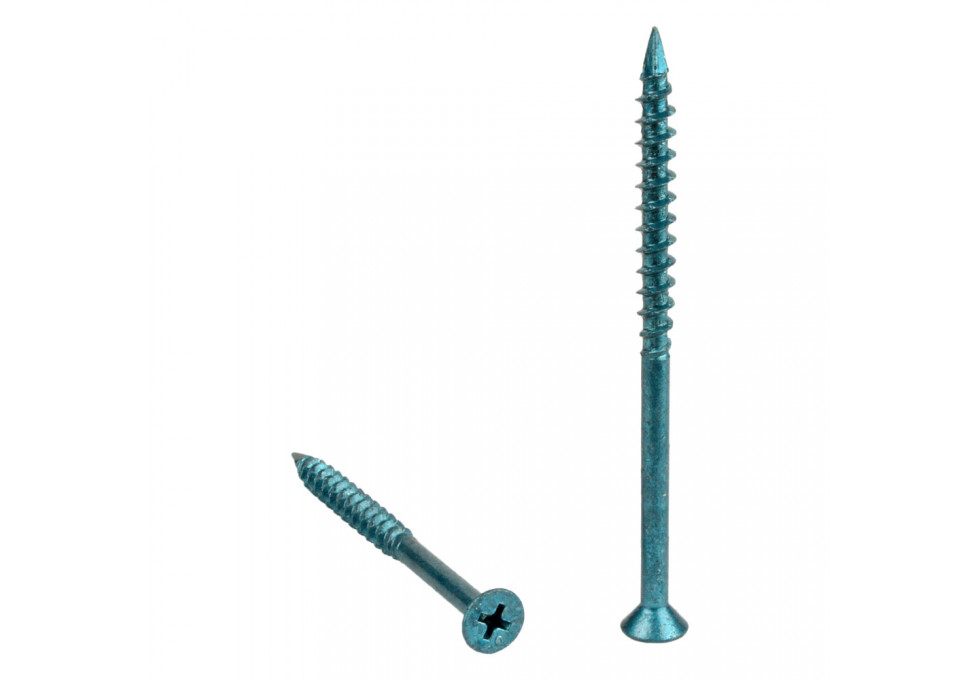

The UCAN Scru-it masonry anchor is manufactured to strict specifications from high quality steel. The proprietary, UCAN designed, scalloped thread cuts deep grooves in a wide variety of masonry materials (solid concrete, block, brick, etc.) producing up to three times the holding power of comparable anchors.

Features

• High Strength
• Close to edge fastening
• No spalling, cuts cleanly into pre-drilled holes
• Fast and easy installation
• Removable
• Diamond point for easy centering
• RUSTPRO coated for maximum corrosion resistance

Typical Applications

• Conduit clips
• Strapping or 2x4 studs
• Metal shelf - uprights
• Cladding
• Window frames
• Brick ties

Corrosion Protection

• Ruspro coating: Multi layer coating provides superior corrosion resistance to sulphur dioxide, salt spray, acids and alkalis as well as having excellent abrasion resistance.

Part No.	Size	Case Qty.	Wt.
	SCP 316114		3/16 X 1-1/4		1,000		10
	SCP 316134		3/16 X 1-3/4		1,000		12
	SCP 316214		3/16 X 2-1/4		1,000		14
	SCP 316234		3/16 X 2-3/4		1,000		17
	SCP 316314		3/16 X 3-1/4		1,000		20
	SCP 3164		3/16 X 4		1,000		23
	SCP 14114		1/4 X 1-1/4		1,000		14
	SCP 14134		1/4 X 1-3/4		1,000		19
	SCP 14214		1/4 X 2-1/4		1,000		23
	SCP 14234		1/4 X 2-3/4		1,000		27
	SCP 14314		1/4 X 3-1/4		1,000		31
	SCP 144		1/4 X 4		1,000		37
	SCP 145		1/4 X 5		600		27
	SCP 146		1/4 X 6		600		33




---

Approximate Item/Package Dimensions in inches

• Width: 0.5
• Height: 0.5
• Depth: 6

Approximate Item/Package Weight in pounds

• Weight: 0.05
