Jet Equipment & Tools Rivet Gun (Kit) - Steel or Aluminum Rivets - Up to 3/16" / 409001
PNEUMATIC - Gives you 3/16" capacity, 2150 ft./lbs. of power & a 1/4" inlet - Special low-pressure casting process - Longer 16mm stroke
PNEUMATIC - Gives you 3/16" capacity, 2150 ft./lbs. of power & a 1/4" inlet - Special low-pressure casting process - Longer 16mm stroke
Product #: JET409001
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 403-342-6030
QTY:
BUY DIRECT
Product Description

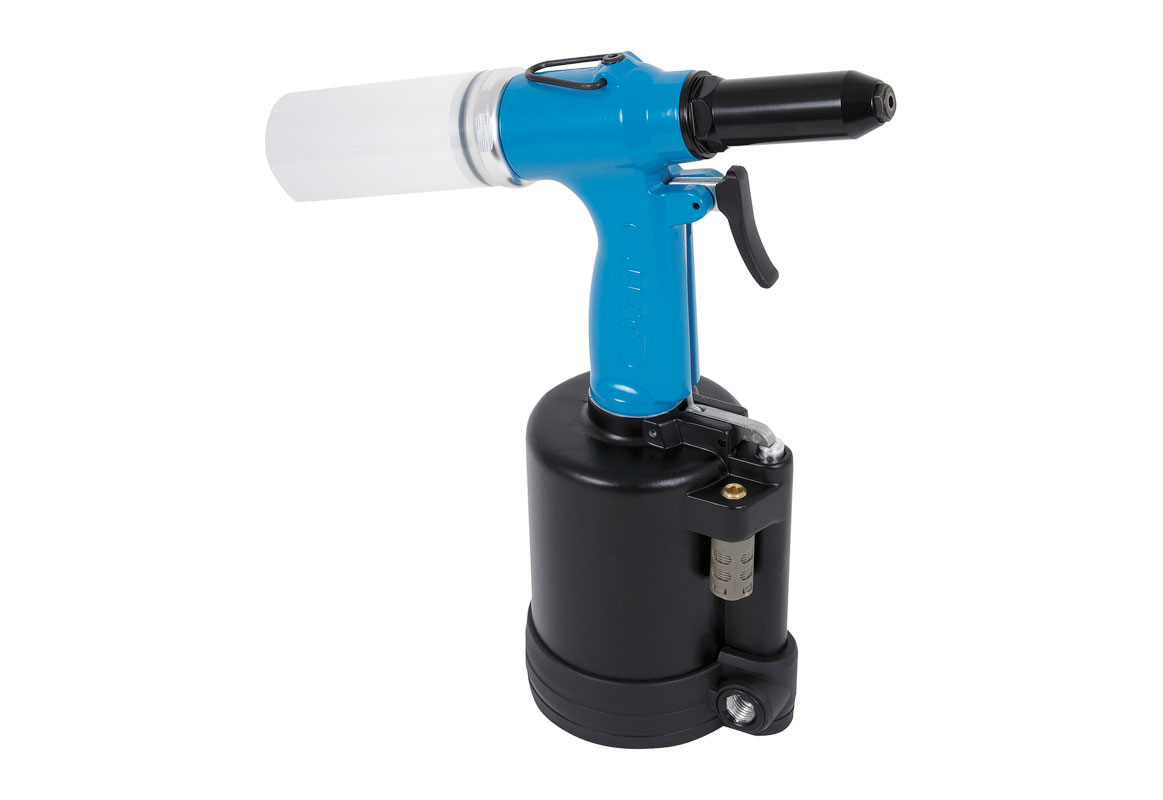

The JET 409001 Heavy Duty Rivet Gun (Rivet Tool) gives you 3/16" capacity, 2150 ft./lbs. of power and a 1/4" inlet.
The new improved model offers you powerful pulling load of 2,150 lbs., and can be used on steel and aluminum rivets up to 3/16”.
The handle and cylinder are made using a special low-pressure casting process, which significantly increases the tool's strength and durability.
Its longer 16mm stroke sets rivets in one hit, increasing your efficiency.
This tool is very compact and lightweight at only 3.08 lbs., and it's built with a high grade, heat treated 3 piece jaw.
This tool includes the following nose pieces:
- 3/32” (2.4mm)
- 1/8” (3.2mm)
- 5/32” (4.0mm)
- 3/16” (4.8mm)
- Riveters: Power or hand tools used to install a rivet through a hole between two or more materials in order to secure them together.
Product Specifications
Vendor Part #: | 530960 |
Air Inlet: | [1/4 inch] NPT |
Avg. Air Consumption : | [0.7 cfm] |
Min. Hose Size: | [3/8 inch] |
Nosepiece: | [3/32 inch], [1/8 inch], [5/32 inch], [3/16 inch] |
Pull Force: | [2150 lbs.] |
Rivet Capacity: | [3/16 inch] |
Sound Pressure (dBA): | [75 dBA] |
Stroke: | [0.629 inch] |
Vibration Level: | [2.5 m/s²] |
Weight: | [3.08 lbs.] |
- √Drives Rivets into Steel
