UCAN Fastening Products Toggle Bolt Anchor - 1/8" Zinc Plated Steel / TOG
W/ heavy gauge wing & nut - Suitable for Square socket / slot drivers - For fastening into any hollow material - Wide bearing arms
Toggle Bolt Anchor - 1/8" Zinc Plated Steel / TOG
W/ heavy gauge wing & nut - Suitable for Square socket / slot drivers - For fastening into any hollow material - Wide bearing arms
Product #: UCATOG183
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: Length: 3"; Specification: A30P-BFXA
Info: Drill Dia. 3/8"
$42.99 /EA
Login for contractor price
Regular: $42.99 /
UCATOG182 2", A30P-BFXA Drill Dia. 3/8" , InStock
$39.99 /100PC
UCATOG183 3", A30P-BFXA Drill Dia. 3/8" , InStock
$42.99 /100PC
UCATOG184 4", A30P-BFXA Drill Dia. 3/8" , InStock
$46.99 /100PC
Length
Specification
Info
PROD #
Price
2"
A30P-BFXA
Drill Dia. 3/8"
UCATOG182
$39.99 /100PC
3"
A30P-BFXA
Drill Dia. 3/8"
UCATOG183
$42.99 /100PC
4"
A30P-BFXA
Drill Dia. 3/8"
UCATOG184
$46.99 /100PC
Available Online: 848
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
UCATOG182 2", A30P-BFXA Drill Dia. 3/8"
$39.99 /100PC
UCATOG183 3", A30P-BFXA Drill Dia. 3/8"
$42.99 /100PC
UCATOG184 4", A30P-BFXA Drill Dia. 3/8"
$46.99 /100PC
Length
Specification
Info
PROD #
Price
2"
A30P-BFXA
Drill Dia. 3/8"
UCATOG182
$39.99 /100PC
3"
A30P-BFXA
Drill Dia. 3/8"
UCATOG183
$42.99 /100PC
4"
A30P-BFXA
Drill Dia. 3/8"
UCATOG184
$46.99 /100PC
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
No customer reviews for the moment.
Product Description

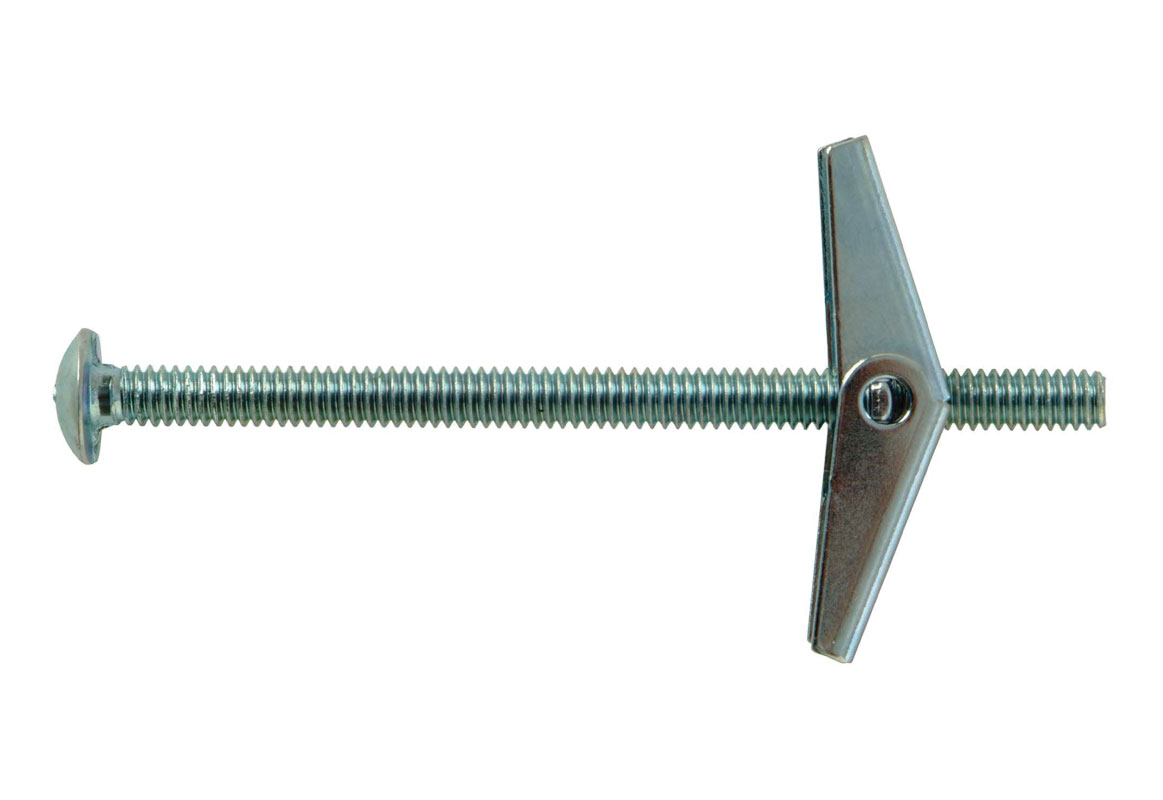

The UCAN Toggle Bolt is an ideal anchor for fastening into any hollow material.
This fastener is made out of high quality zinc plated steel, and has wide bearing arms that creates excellent load transfer on the back of the base material.
UCAN toggle bolt anchors are available in 1/8" to 3/8" diameters and with bolt lengths up to 6".
The truss combination head is suitable for Square socket or slot drivers.
Please Note: use as guid values ONLY. Actualy results may vary depending on base material quality and installation conditions.
This fastener is made out of high quality zinc plated steel, and has wide bearing arms that creates excellent load transfer on the back of the base material.
UCAN toggle bolt anchors are available in 1/8" to 3/8" diameters and with bolt lengths up to 6".
The truss combination head is suitable for Square socket or slot drivers.
- Heavy Duty Nut (IMPROVED wing and spring)
- Fully Assembled Unit
- Built for Fastening into Hollow Base Materials
Ultimate Tenesion Loads | ||
|---|---|---|
| Bolt Size | Block | Drywall |
| 1/8" | 4300 lbs. | 120 lbs. |
| 3/16" | 470 lbs. | 165 lbs. |
| 1/4" | 1090 lbs. | 175 lbs. |
| 3/8" | 1170 lbs. | 190 lbs. |
Product Specifications
| Vendor Part #: | TOG18 |
| Screw Drive Type: | Combination (Phillips/Slotted) |
| Head Type: | Truss (Mushroom) |
| Material: | Steel |
| Plating: | Zinc |
- √For Ceiling Hangings
- √For Decorative Fixtures
- √For Hand Rails
- √For Light Fixtures
- √For Wall Hangings
