Bosch Power Tools 2.25 HP Electronic Fixed-Base Router - *BOSCH
2.25 HP Electronic Fixed-Base Router

2.25 HP Electronic Fixed-Base Router - *BOSCH


Product #: BST1617EVS
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.

Pls.Call

0

/EA

$246.24

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Please Call for Special Orders : 403-342-6030


QTY:

ADD TO CART
BUY DIRECT
Robert Bosch GmbH is the largest power tool and accessory manufacturer in the world, Bosch provides a complete line of corded and cordless power tools.

No customer reviews for the moment.

Product Description

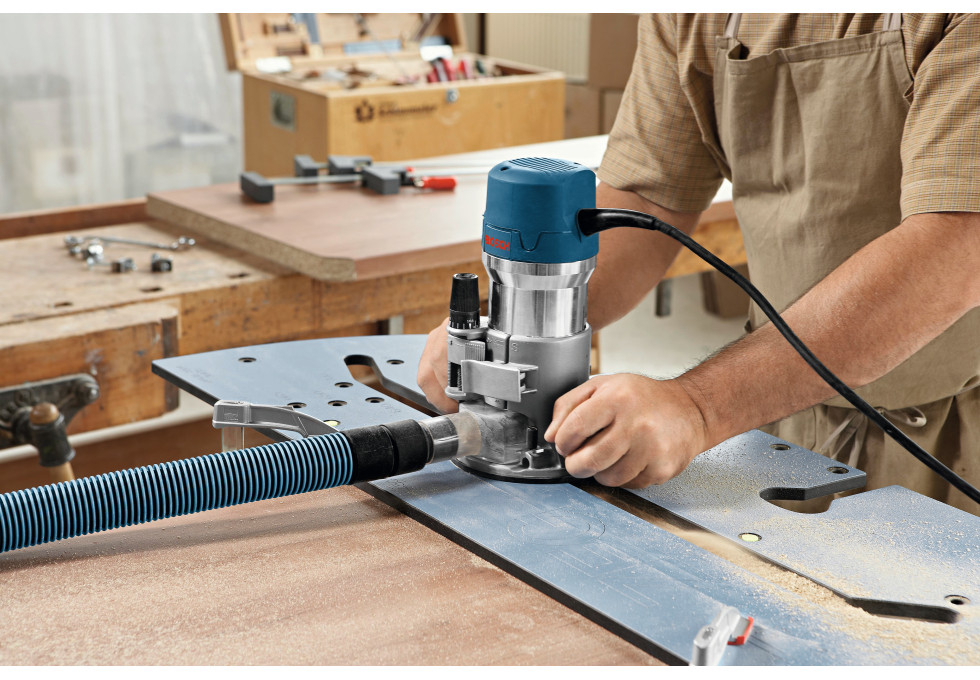

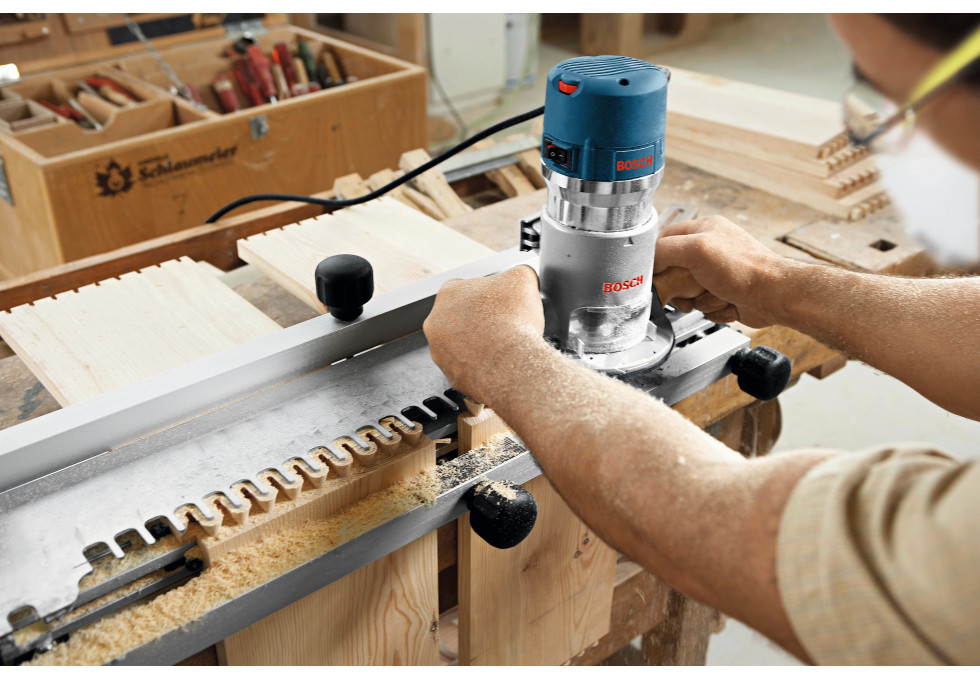

The Bosch 2.25 HP Electronic Fixed-Base Router - *BOSCH. The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.

Build

  • 12 Amp router motor - combines ample power with adjustable speed settings, allowing users to glide along cutlines
  • Constant Response circuitry stabilizes start-up torque
  • Adjustable speed dial (8000-25,000 RPM)
  • Microfine bit-depth adjustment
  • Rounded hardwood handles maximize user control
  • Right or left switch location - for user preference and consistency (motor does not rotate during depth adjustment)
  • Threaded three-hole base pattern
  • Dust-sealed power switch
  • One-piece armature shaft
  • 2 In. sub-base opening
  • Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern

Approximate Item/Package Dimensions in inches

  • Width: 7.8
  • Height: 10
  • Depth: 12.15

Approximate Item/Package Weight in pounds

  • Weight: 11.27

This Product Comes With

  • Router, 1/4 In., and 1/2 In. Self Releasing Collet Chucks, 16 mm Shaft Wrench, 24 mm Collet Nut Wrench
Product Specifications
Vendor Part #:1617EVS
Amperage Measurement:[12.0 amps] at [120 V]
Base Diameter:6 inches Outside, 3-3/4 inches Inside
Collet Size:1/4", 3/8", 1/2", 8 mm
Length:[6 inches]
No Load Speed:8,000-25,000 RPM
Weight:8.3 lbs
Width:10 inches
Fixed-Base Depth Range:1-5/8 inches
Sub-base Opening:2 inches
  • Routering Edges
