Bosch Power Tools 7.0 Amp Barrel-Grip Jig Saw - *BOSCH
7.0 Amp Barrel-Grip Jig Saw
7.0 Amp Barrel-Grip Jig Saw - *BOSCH
Product #: BSTJS470EB
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Robert Bosch GmbH is the largest power tool and accessory manufacturer in the world, Bosch provides a complete line of corded and cordless power tools. No customer reviews for the moment.
Product Description

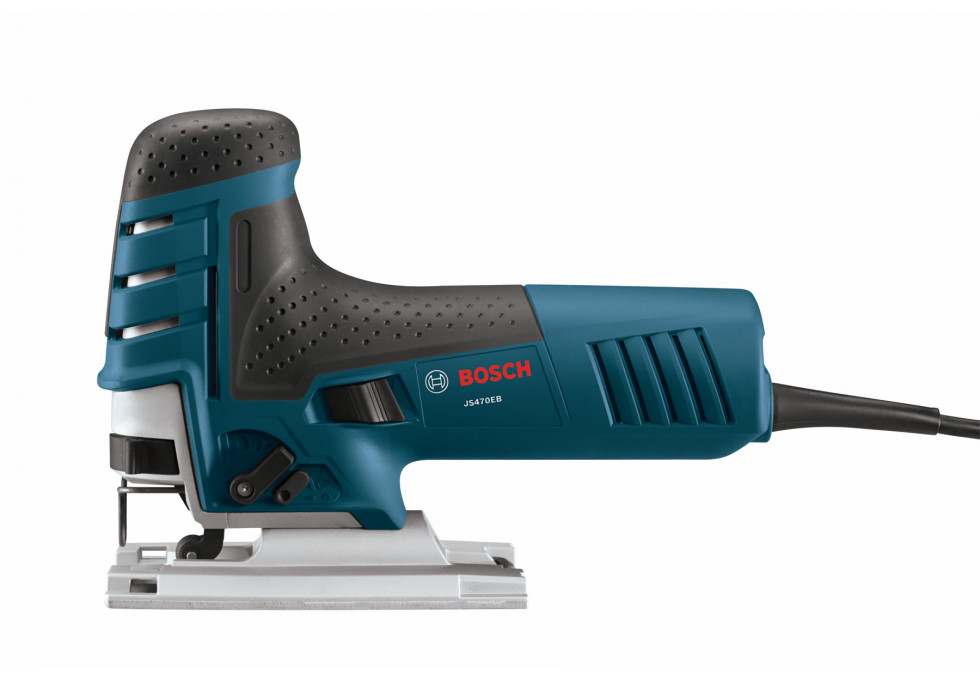

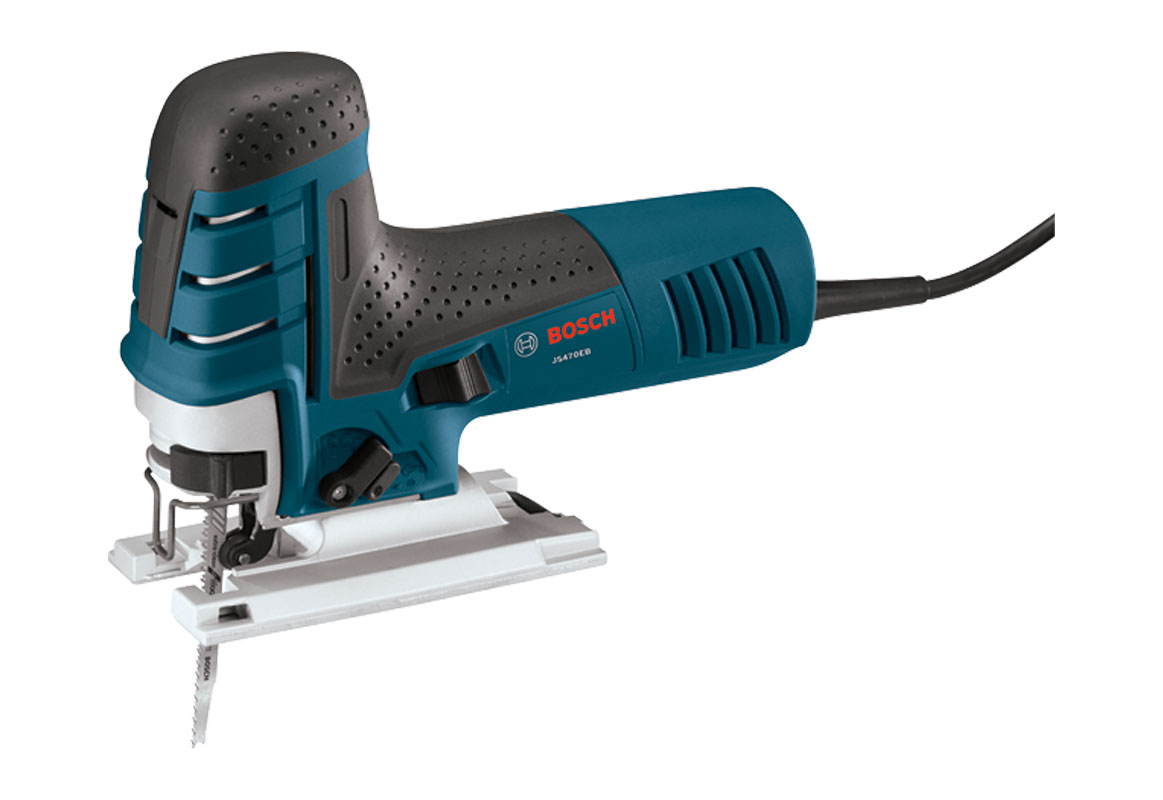

The Bosch 7.0 Amp Barrel-Grip Jig Saw - *BOSCH. The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute – with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
Build
- Large die-cast aluminum footplate – provides a no-mar plastic overshoe
- Ergonomic body – features an upfront grip area for maximum control, precision and comfort
- Soft-grip areas – offers a solid, comfortable grip
- Powerful 7.0 Amp motor – delivers up to 3,100 strokes per minute
- Variable-speed control – includes a dial to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – provides durability
- Toolless blade-change system – permits fast blade insertion
- Ejection lever – eliminates the need to touch hot blades
- Four orbital-action settings – varied blade strokes
Approximate Item/Package Dimensions in inches
- Width: 14.5
- Height: 4.75
- Depth: 15.5
Approximate Item/Package Weight in pounds
- Weight: 9.93
This Product Comes With
- (1) JS470EB 7.0 Amp Barrel-Grip Jig Saw, (1) Non-Marring Overshoe, (1) Anti-Splinter Insert, (1) Jig Saw Blade, (1) Bevel Wrench, (1) Carrying Case
- Jig Saws Blade: A jig saw blade is a narrow reciprocating blade built to be mounted vertically in a frame. It's usually used for cutting curves or other difficult lines or patterns.
Product Specifications
| Vendor Part #: | JS470EB |
| Blade Type: | T-Shank |
| Cutting Capacity - Aluminum: | [7/8 inch] |
| Cutting Capacity - Mild Steel: | [3/8 inch] |
| Cutting Capacity - Soft Wood: | [5-7/8 inches] |
| Dust / Partical Removal: | Dust Collection Included |
| Hertz: | [60 Hz] |
| Max Bevel Angle: | [45 degrees] |
| Overall Length: | [7 inches] |
| Overall Width: | [2.5 inches] |
| Stroke: | [1 inch] |
| Strokes Per Minute: | [500 - 3100 SPM] |
| Voltage Rating: | [120 Volts] |
| Weight: | [5.9 lbs.] |
- √at the Construction Site
- √for Cutting into Aluminum
- √for Cutting into Steel
- √for Cutting into Wood
