Bosch Power Tools 7.0 Amp Top-Handle Jig Saw - *BOSCH
7.0 Amp Top-Handle Jig Saw
7.0 Amp Top-Handle Jig Saw - *BOSCH
7.0 Amp Top-Handle Jig Saw
Product #: BSTJS470E
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Robert Bosch GmbH is the largest power tool and accessory manufacturer in the world, Bosch provides a complete line of corded and cordless power tools. No customer reviews for the moment.
Product Description

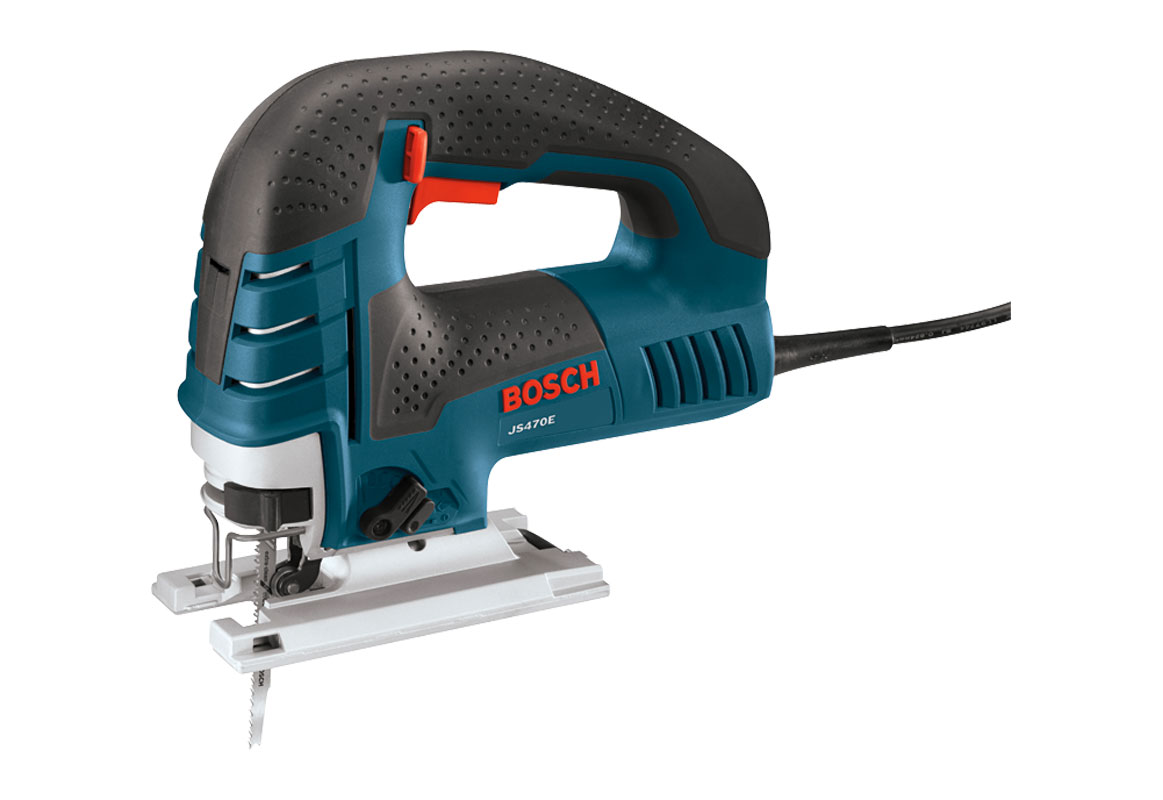

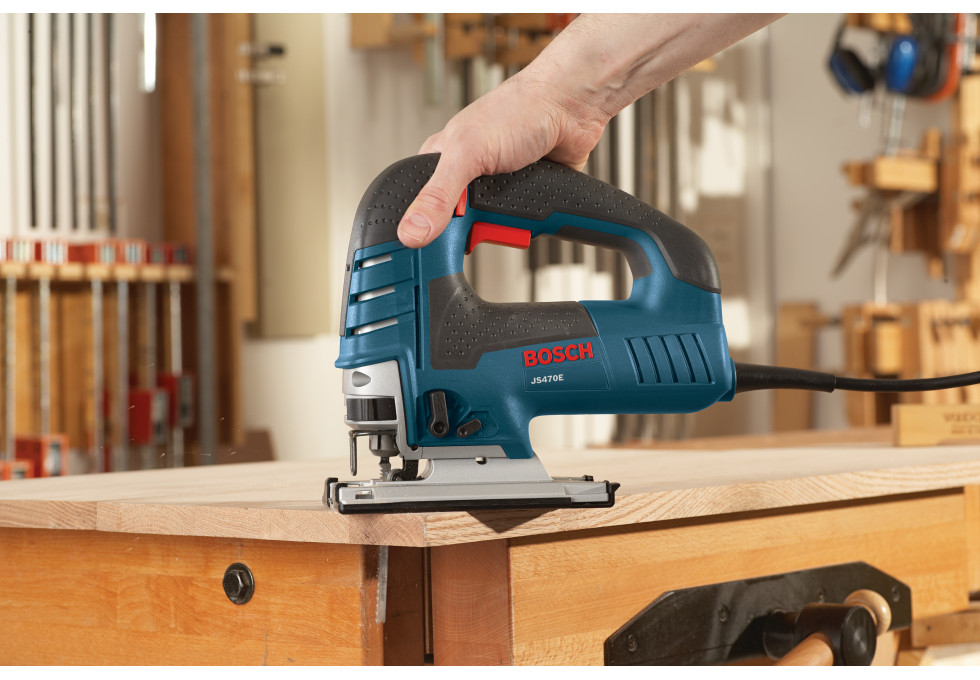

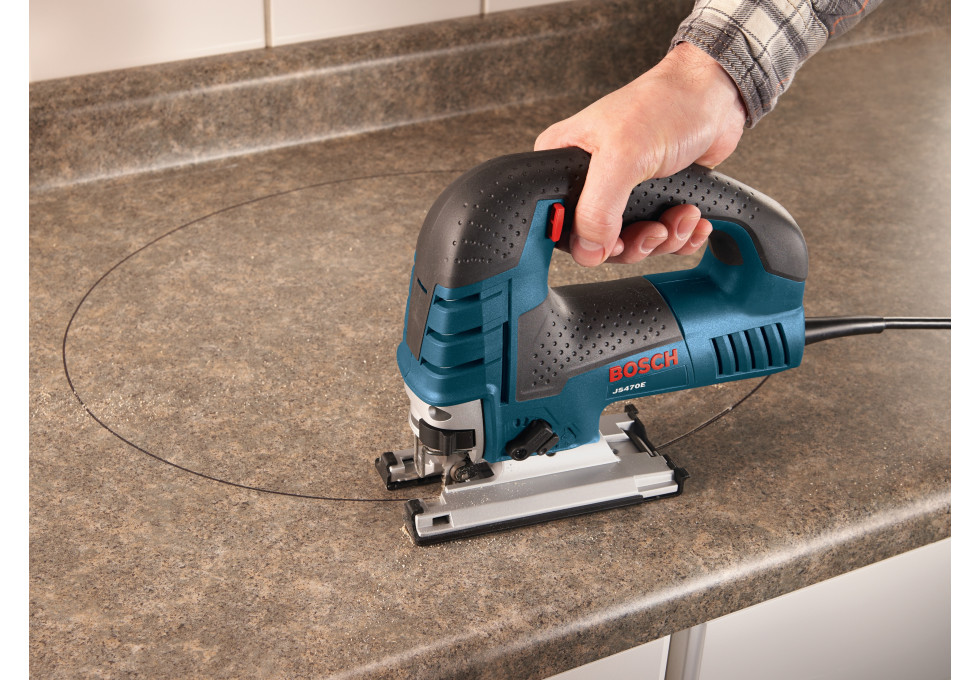

The Bosch 7.0 Amp Top-Handle Jig Saw - *BOSCH. The Bosch JS470E Top-Handle Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. A dial on the back of the tool controls the maximum speed and the accelerator trigger controls the operating speed. Built with an aluminum gearbox and an insulated cover, this jig saw comes with a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate. The JS470E's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
Build
- Powerful jig saw – with 7.0 amp rating
- Large die-cast aluminum footplate – with steel insert and on-board storage of bevel hex key
- Variable-speed control – includes a dial for max speed and accelerator trigger to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – supplies superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – offers durability
- Toolless blade-change system – furnishes fast blade insertion and a blade-ejection lever; no need to touch hot blades
- Four orbital-action settings – provide varied blade strokes for smooth to aggressive cuts
- Internal precision control – supplies a precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
- Dust blower with on/off switch – for keeping the cut line visible and free of dust
- Ergonomic top handle with soft-grip areas – supplies a solid, comfortable grip
Approximate Item/Package Dimensions in inches
- Width: 14.5
- Height: 4.75
- Depth: 15.5
Approximate Item/Package Weight in pounds
- Weight: 10.26
- Jig Saws Blade: A jig saw blade is a narrow reciprocating blade built to be mounted vertically in a frame. It's usually used for cutting curves or other difficult lines or patterns.
Product Specifications
| Vendor Part #: | JS470E |
| Blade Type: | T-Shank |
| Cutting Capacity - Aluminum: | [7/8 inch] |
| Cutting Capacity - Mild Steel: | [3/8 inch] |
| Cutting Capacity - Soft Wood: | [5-7/8 inches] |
| Dust / Partical Removal: | Dust Collection Included |
| Hertz: | [60 Hz] |
| Max Bevel Angle: | [45 degrees] |
| Overall Length: | [14 inches] |
| Overall Width: | [4.0 inches] |
| Stroke: | [1 inch] |
| Strokes Per Minute: | [500 - 3100 SPM] |
| Switch Type: | Variable Speed Intermediate |
| Voltage: | [120 Volt] |
| Voltage Rating: | [120 Volts] |
| Weight: | [5.6 lbs.] |
