Greenlee 6,000-Count Digital Multimeter, 1000V, 8A (DM-510A)
Professional Plant Digital

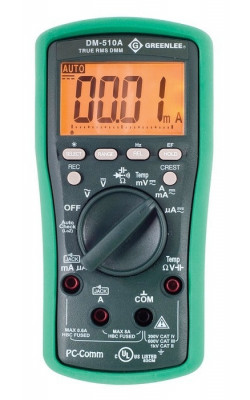

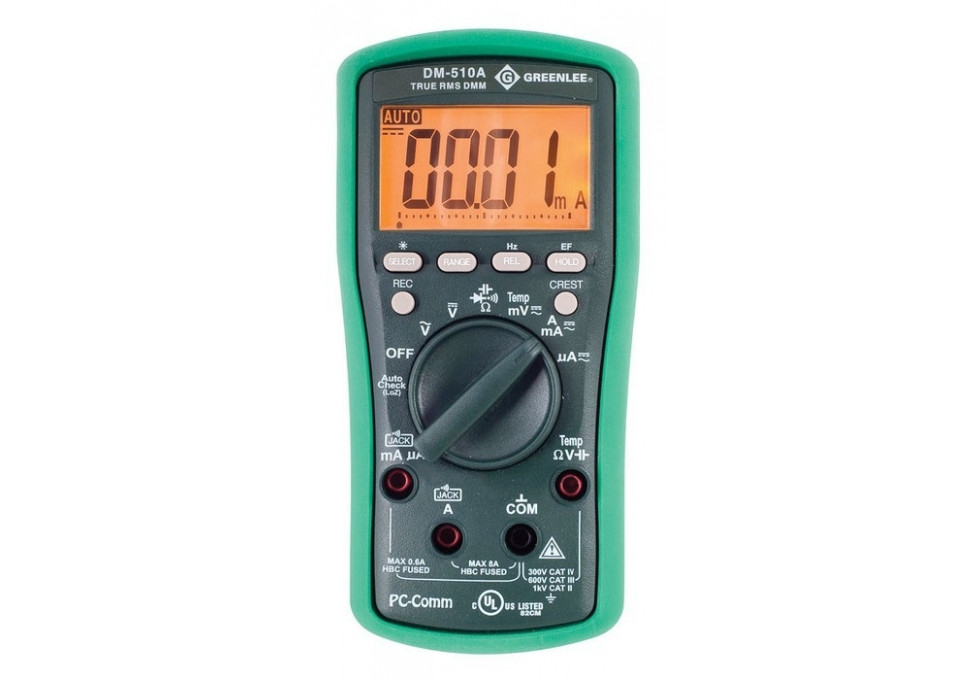

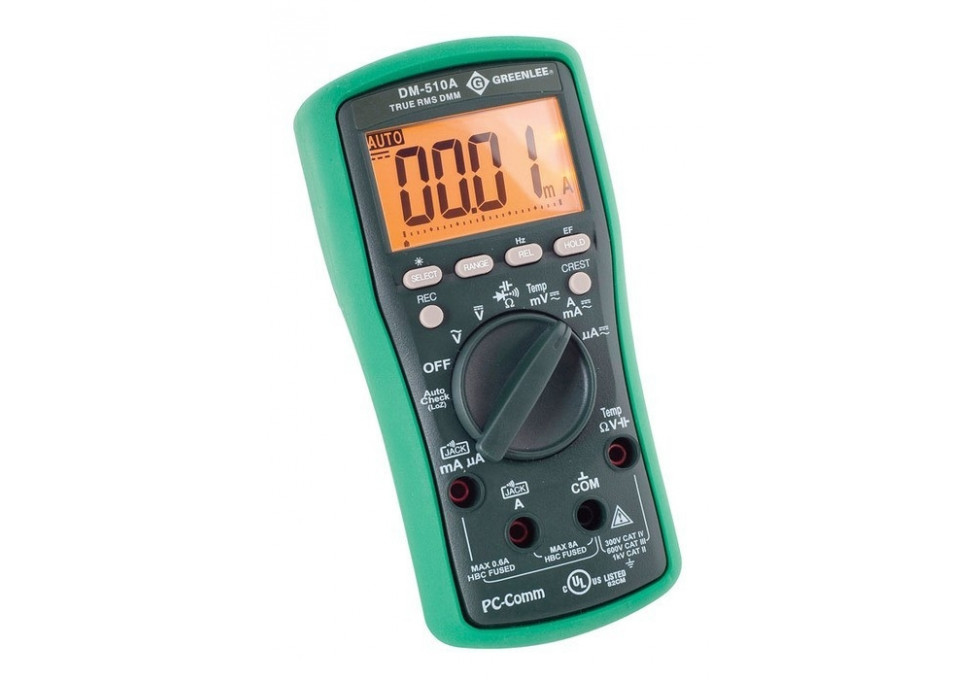

6,000-Count Digital Multimeter, 1000V, 8A (DM-510A)
Product #: GREDM-510A
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 403-342-6030
QTY:
BUY DIRECT
Greenlee - a Textron Company, provides high quality tools for installing wire and cable.
No customer reviews for the moment.
Product Description
The Greenlee 6,000-Count Digital Multimeter, 1000V, 8A (DM-510A). DMM,TRMS,AC/DC,CAP,TEMP
Build
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6,000 count display
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual rangeselection
- Relative offset mode to see changes in measurements
Approximate Item/Package Dimensions in inches
- Width: 6.200
- Height: 3.250
- Depth: 9.800
Approximate Item/Package Weight in pounds
- Weight: 0.915
Product Specifications
| Vendor Part #: | DM-510A |
| Amperage Measurement: | 600, 6000μA; 60, 600mA; & 6, 8A |
| Battery Requirements: | [2 AAA] |
| Capacitance: | 60, 600 nF; 6, 60, 600, 3000μF |
| Display Count: | 6000 |
| Display Type: | Backlit LCD |
| Frequency Measurement: | [10 Hz] - [50 kHz] Sine Wave & [5 Hz] - [999.9 kHz] Logic Level Square Wave |

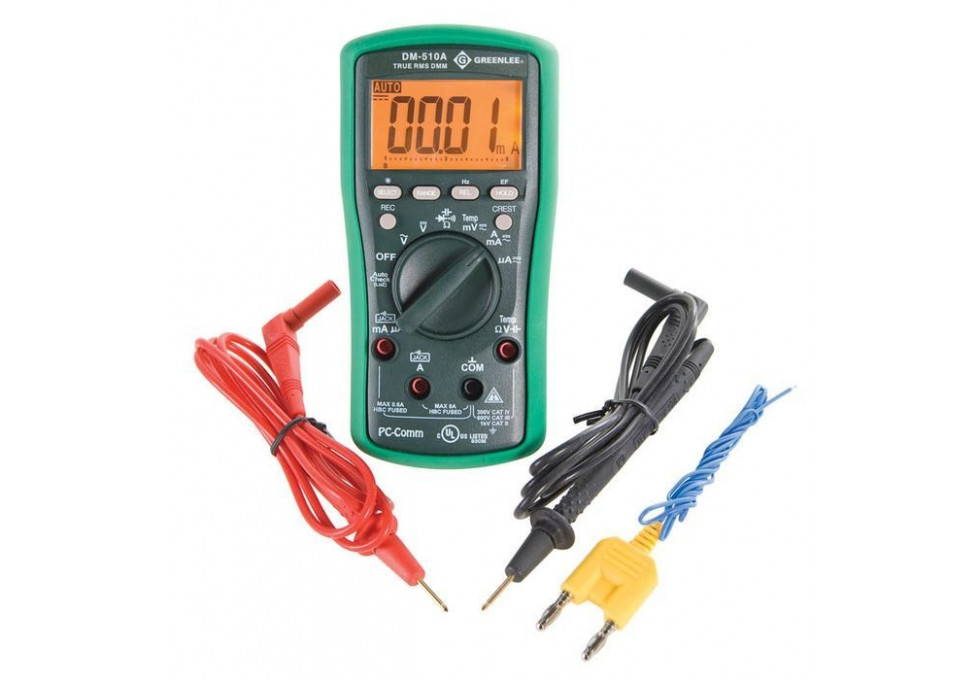

| Includes: | (2) [1.5 V] AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, [400 degrees]F/[204 degrees]C max), Test leads, & ProtectiveBoot |
| Measurement Category: | CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Replacement Parts: | TSG-3 Sure-Grip Test Leads |
| Resistance Measurement: | [600 Ω] / [6 kΩ], [60 kΩ], [600 kΩ] / [6 mΩ], [60 mΩ] |
| Standard: | CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed |
| Temperature Rating: | K Type, [-58 degrees Fahrenheit] to [1832 degrees Fahrenheit] ([-50 degrees Celsius] to [1000 degrees Celsius]) |
| Type: | Professional Plant Digital |
| Voltage: | [60 mV], [600 mV]; [6 Volts], [60 Volts], [600 Volts], [1000 Volts] |
| Spec 1: | Amperage Measurement : 600, 6000μA; 60, 600mA; 6, 8A |
| Spec 2: | Battery : (2) 1.5 V AAA |
| Spec 3: | Capacitance : 60, 600 nF; 6, 60, 600, 3000μF |
| Spec 4: | Display : Backlit LCD With 6,000 Count |
| Spec 5: | Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave |
| Spec 6: | Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot |
| Spec 7: | Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Spec 8: | Replacement Part : TSG-3 Sure-Grip Test Leads |
| Spec 9: | Resistance Measurement : 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Spec 10: | Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed |
| Spec 11: | Sub Brand : ESM |
| Spec 12: | Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) |
| Spec 13: | Type : Professional Plant Digital |
| Spec 14: | Voltage Measurement : 60, 600 mV, 6, 60, 600, 1000V |
- √AC Detection
- √DC Detection
- √Measuring Amperage
- √Measuring Frequency
- √Measuring Resistance
- √Measuring Voltage
