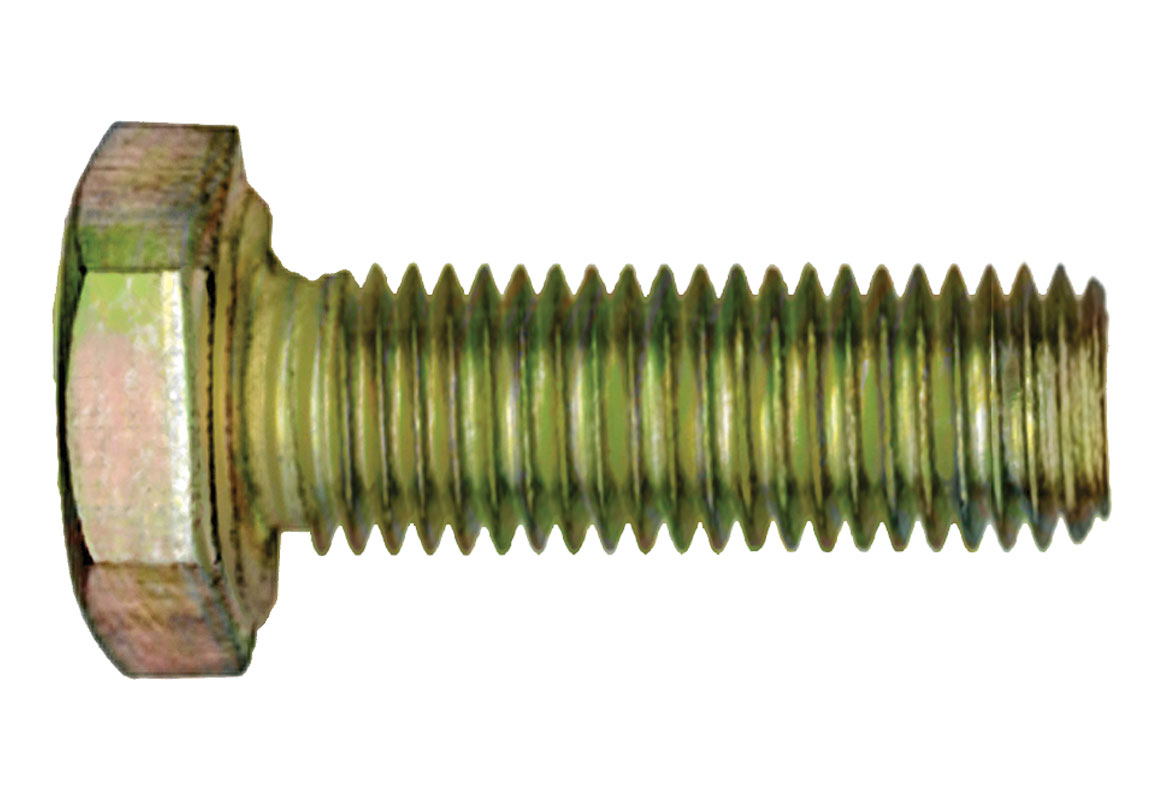

Hex Head Cap Screw 1-1/8" UNF - Grade 8 / Yellow Zinc
7 thread count / Fine Thread *SAE GRADE 8 BOLT / Zinc Plated & Dichromate Dipped Golden Alloy Finish. Unified Standard Class 2A Fit.
Hex Head Cap Screw 1-1/8" UNF - Grade 8 / Yellow Zinc
7 thread count / Fine Thread *SAE GRADE 8 BOLT / Zinc Plated & Dichromate Dipped Golden Alloy Finish. Unified Standard Class 2A Fit.
Product #: CSZ8F018048
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: DIA.: 1-1/8"; Length: 3"
Info: 12 - UNF
$689.93 /EA
Login for contractor price
Regular: $689.93 /
CSZ8F018048 1-1/8", 3" 12 - UNF , InStock
$689.93 /100PC
DIA.
Length
Info
PROD #
Price
1-1/8"
3"
12 - UNF
CSZ8F018048
$689.93 /100PC
Available Online: 7
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
CSZ8F018048 1-1/8", 3" 12 - UNF
$689.93 /100PC
DIA.
Length
Info
PROD #
Price
1-1/8"
3"
12 - UNF
CSZ8F018048
$689.93 /100PC
Product Description
Hexagonal Head Cap Screws - U.N.F. *SAE GRADE 8
Alloy STEEL
Zinc Plated & Dichromate Dipped Golden Alloy Finish
ASME/ANSI B18.2.1UNIFIED STANDARDClass 2A Fit
MINIMUM TENSILE STRENGTH (PSI)
- 1/4" through 1-1/2" - 150,000 PSI
MINIMUM THREAD LENGTH
- Up to 6” long: (2D + 1/4) Twice diameter plus 1.4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
- U.N.F. : Acronym, Unified National Fine. A thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.) that has a slightly higher breaking load capacity than U.N.C. (Unified National Coarse) threads. This higher breaking load capacity is a result of the more shallow thread depth and larger tensile stress area for fasteners of the same identical material and diameter. The smaller lead angle allows for fine adjustments where needed.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
Product Specifications
| Vendor Part #: | 8F018056 |
| Grade: | 8 |
| Head Type: | I.F.I. Standard Hex |
| Material: | Alloy Steel |
| Plating: | Yellow Zinc |
| Tensile Strength (minimum): | [150000 psi] |
| Wrench Size: | [1-11/16 inches] |
- √High Strength & High-Stress Applications
