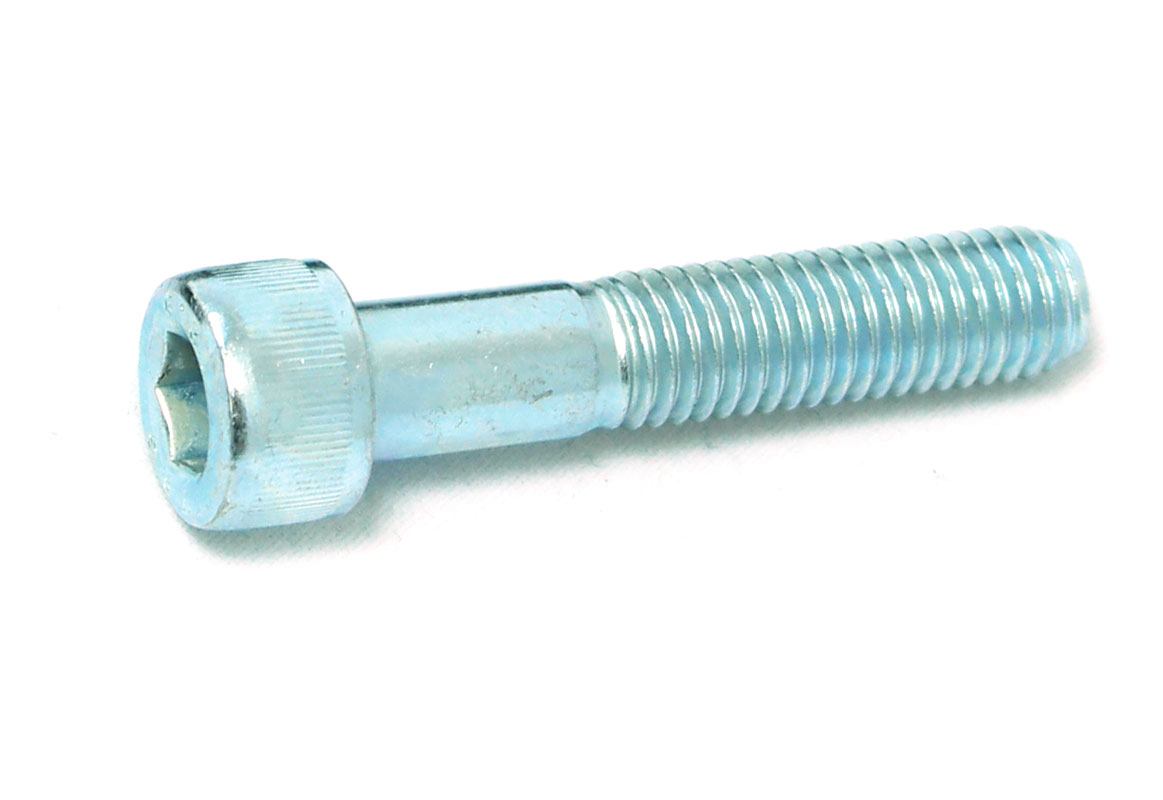

Brighton-Best Hex Socket Cap Screws 1/4" Diameter - 18.8 Stainless Steel
Hexagon Socket Head Cap Screws *1960 Series / 18.8 STAINLESS STEEL Corrosion Resistant - Unified 3A Thread Fit *UNC Coarse Thread
Hex Socket Cap Screws 1/4" Diameter - 18.8 Stainless Steel
Hexagon Socket Head Cap Screws *1960 Series / 18.8 STAINLESS STEEL Corrosion Resistant - Unified 3A Thread Fit *UNC Coarse Thread
Product #: BRI592263
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: DIA.: 1/4"; Length: 3"
Info: 20 - UNC
$128.43 /EA
Login for contractor price
Regular: $128.43 /
BRI012141 1/4", 1/2" 20 - UNC , InStock
$30.24 /100PC
BRI012145 1/4", 3/4" 20 - UNC , InStock
$40.01 /100PC
BRI012159 1/4", 2" 20 - UNC , InStock
$94.50 /100PC
BRI592263 1/4", 3" 20 - UNC , InStock
$128.43 /100PC
DIA.
Length
Info
Qty Info
PROD #
Price
1/4"
1/2"
20 - UNC
Sold per 25
Min Buy of 100
BRI012141
$30.24 /100PC
1/4"
3/4"
20 - UNC
Sold per 25
Min Buy of 100
BRI012145$40.01 /100PC
1/4"
2"
20 - UNC
Sold per 25
Min Buy of 100
BRI012159$94.50 /100PC
1/4"
3"
20 - UNC
Sold per 25
Min Buy of 100
BRI592263$128.43 /100PC
Available Online: 54
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
This item is sold in multiple of 25.
Minimal order quantity for this item is 100.
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
BRI012141 1/4", 1/2" 20 - UNC
$30.24 /100PC
BRI012145 1/4", 3/4" 20 - UNC
$40.01 /100PC
Call for Availability : 403-342-6030
BRI012159 1/4", 2" 20 - UNC
$94.50 /100PC
Call for Availability : 403-342-6030
BRI592263 1/4", 3" 20 - UNC
$128.43 /100PC
Call for Availability : 403-342-6030
BRI592245 1/4", 1/4" 20 - UNC
Call for Availability : 403-342-6030
BRI012153 1/4", 1-1/2" 20 - UNC
Call for Availability : 403-342-6030
DIA.
Length
Info
Qty Info
PROD #
Price
1/4"
1/2"
20 - UNC
Sold per 25
Min Buy of 100
BRI012141
$30.24 /100PC
1/4"
3/4"
20 - UNC
Sold per 25
Min Buy of 100
BRI012145$40.01 /100PC
1/4"
2"
20 - UNC
Sold per 25
Min Buy of 100
BRI012159$94.50 /100PC
1/4"
3"
20 - UNC
Sold per 25
Min Buy of 100
BRI592263$128.43 /100PC
Since 1925 Brighton-Best has been a trusted supplier of screws and bolts. No customer reviews for the moment.
Product Description
Hexagon Socket Head Cap Screws
High-Strength Tension Fasteners
18.8 STAINLESS STEEL
Corrosion Resistant
1960 Series
ASME/ANSI B18.3 & ASTM A837
Our 18.8 Stainless Steel Products Meet the requirements of ANSI/ASME, ASTM and / or AISI specifications
- Unified 3A Thread Fit
- UNC Coarse Thread
- Hexagon Socket Cap Screws (B18.3, 1960)
MINIMUM TENSILE STRENGTH (PSI)
- Up to 1” dia. inclusive 95,000 PSI
NOMINAL SIZES (Standard)
- #0 to 1”
- U.N.C.: Acronym, Unified National Coarse. The most common thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.), and is the preferred thread type for general purpose inch fasteners. Because of the coarse pitch, the threads are deeper than finde threads (U.N.F.) and are easier to assemble without cross threading.
- U.N.F. : Acronym, Unified National Fine. A thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.) that has a slightly higher breaking load capacity than U.N.C. (Unified National Coarse) threads. This higher breaking load capacity is a result of the more shallow thread depth and larger tensile stress area for fasteners of the same identical material and diameter. The smaller lead angle allows for fine adjustments where needed.
- 18-8 Stainless Steel: A corrosion resistant material for fasteners that contains approximately 18% chromium and 8% nickel. It provides excellent protection against rust and corrosion. 18-8 Stainless Steel may be mildly magnetic and is comparable to ASTM 300 Series and ISO A2.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- ASTM: Acronym, American Society for Testing and Materials (name officially changed to "ASTM International" in 2001). ASTM is an international standards organization that develops and publishes voluntary consensus technical standards for a wide range of materials, products, systems, and services.
Product Specifications
| Vendor Part #: | 188C004008 |
| Material: | 18-8 stainless steel |
- √for Projects that require aesthetic care
- √for Clamping Assemblies
- √in Tool & Die Fixture Applications
