Lock Washer - Helical Spring - Steel / Plain
ASME / ANSI B18.21.1 -1999 - IMPERIAL - Oil Coating Resists Corrosion - For use with nuts & bolts to aid in preventing them from loosening
Lock Washer - Helical Spring - Steel / Plain
ASME / ANSI B18.21.1 -1999 - IMPERIAL - Oil Coating Resists Corrosion - For use with nuts & bolts to aid in preventing them from loosening
Product #: LWB006
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: For Bolt Dia.: 3/8"
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
We're low on this Washer. Please Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Product Description

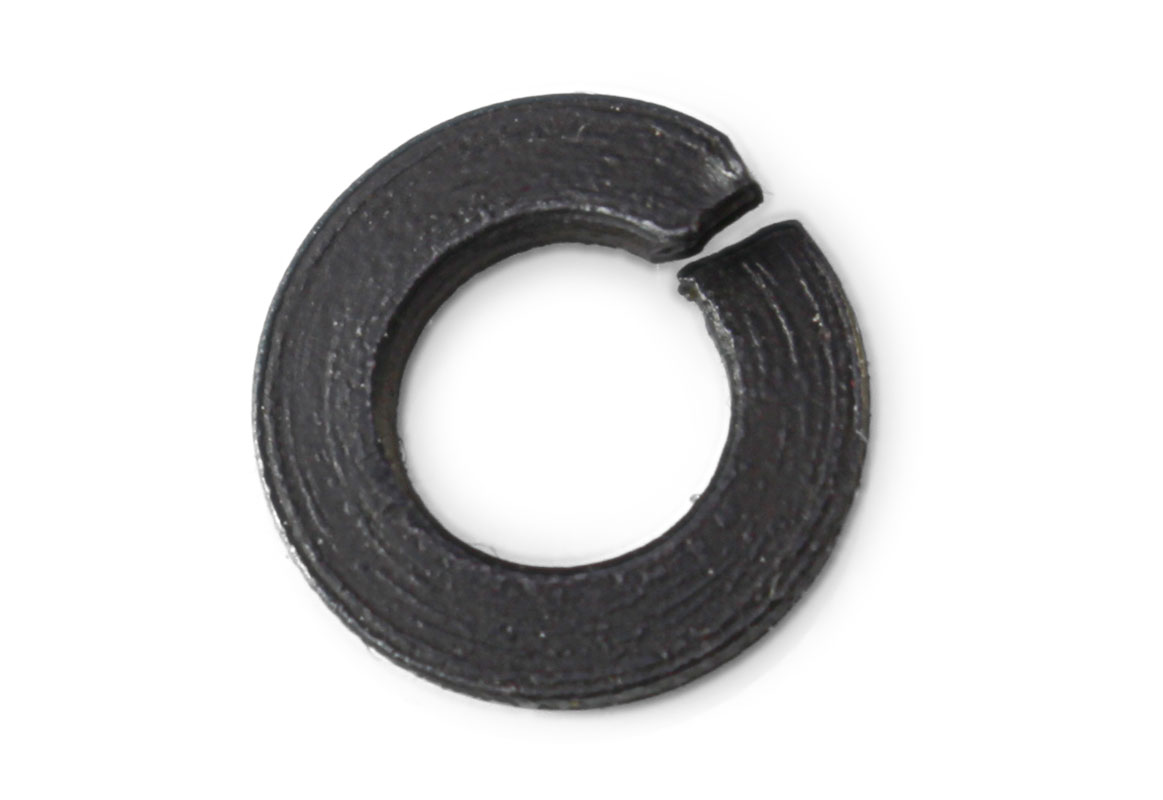

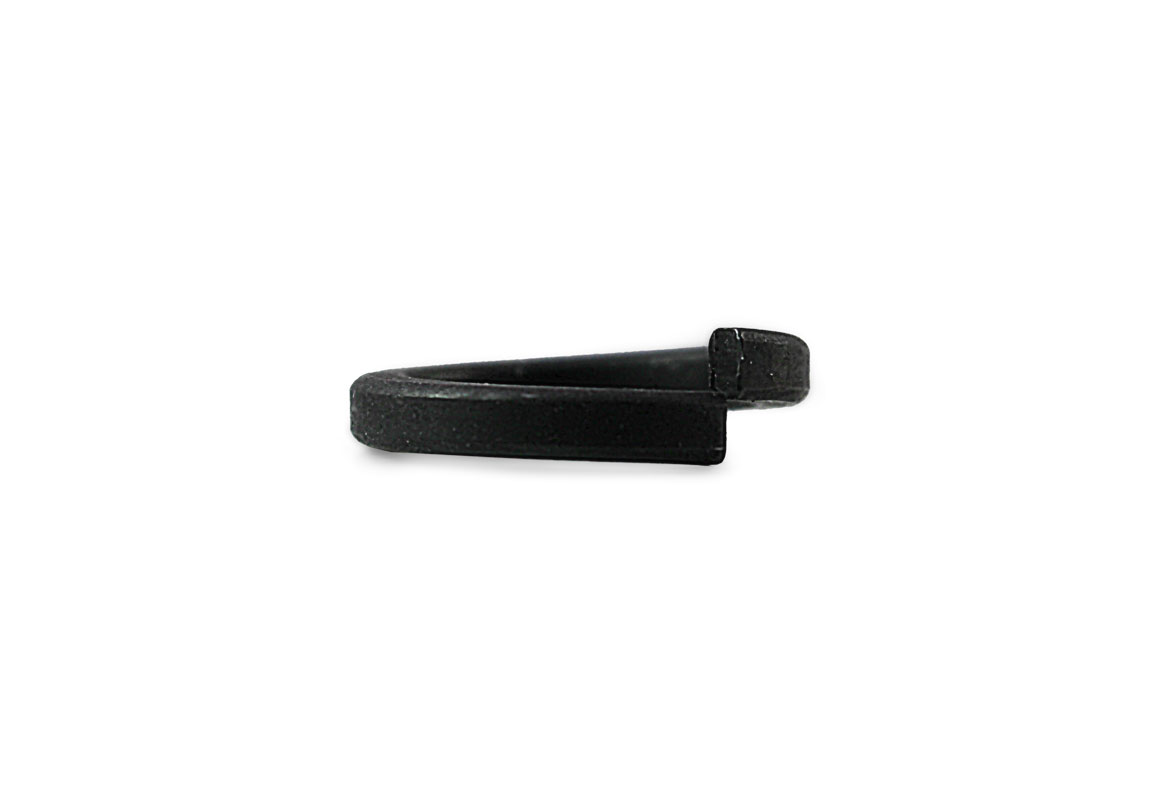

Helical Spring Split Steel Lock Washer
√ STEEL - FOR EXTRA STRENGTH
ASME / ANSI B18.21.1 -1999
1060 Medium Carbon Steel
Bare / Plain With Light Oil Protection
*Imperial
STANDARD SIZES
Built for use with nuts & bolts to aid in preventing them from loosening.
Regular Split Lock Washer Thicknesses
| For Bolt Diameters | Thickness |
| 1/4" | .062 inches |
| 5/16" | .078 inches |
| 3/8" | .094 inches |
| 7/16" | .109 inches |
| 1/2" | .125 inches |
| 5/8" | .156 inches |
| 3/4" | .188 inches |
| 7/8" | .219 inches |
| 1" | .250 inches |
| 1-1/8" | .281 inches |
| 1-1/4" | .312 inches |
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
- Lock Washer: Lock Washers are built to prevent a bolt or nut from loosening after it has been tightened. When a bolt or nut is used with this kind of washer between the surface being bolted to, the washer uses either compression with a spring force or interlock and bite to lock the bolt or nut in place. This helps to prevent vibration from loosening the bolt or nut and causing the joint to lose strength.
- Split Lock Washers: These lock washers are made with a split where the ends are slightly uneven from each other. When compressed, the split ends bite into either the head of a bolt or the nut depending on how it is used, this helps to prevent the bolt or nut from loosening.
- Bare / Plain Finish: Uncoated steel is cost-effective and suitable for indoor applications or in environments where environmental factors will not cause corrosion or rust.
Product Specifications
| Vendor Part #: | 004 |
| Coating: | Light Oil |
| Material: | Steel |
| Plating: | Bare / Plain |
| Washer Type: | Helical Spring |
- √Preventing Nuts and Bolts from Loosening
