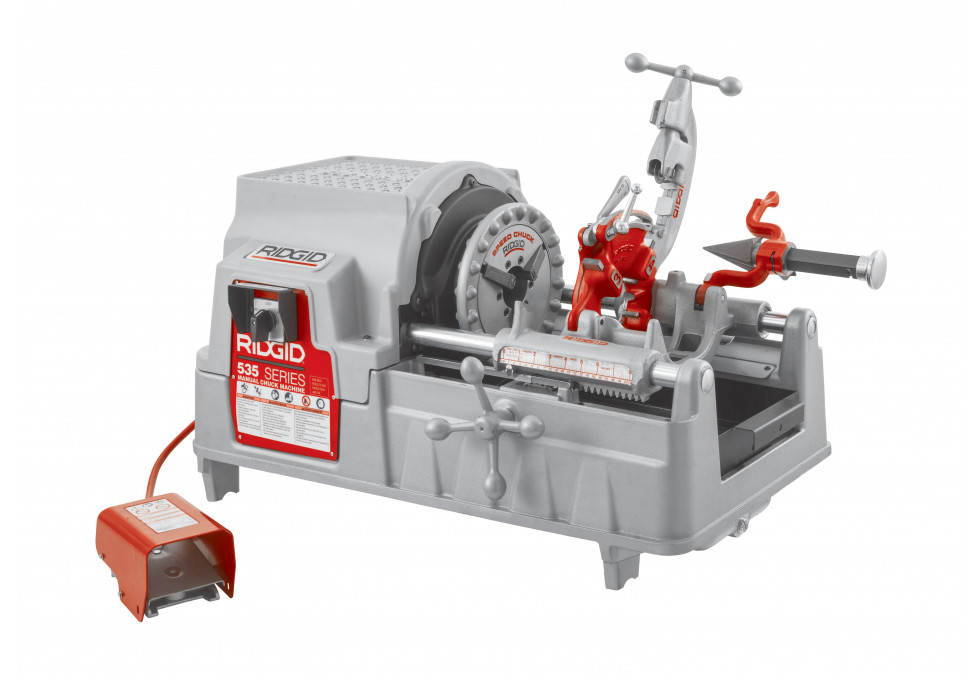

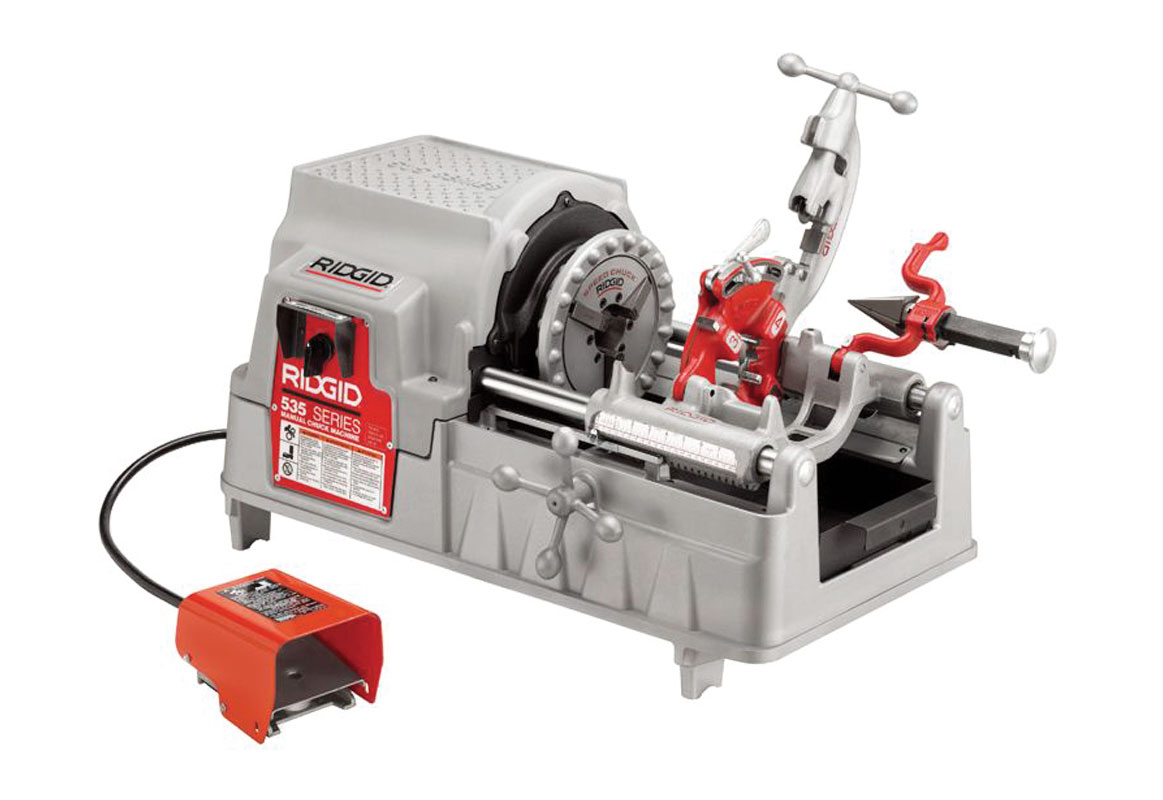

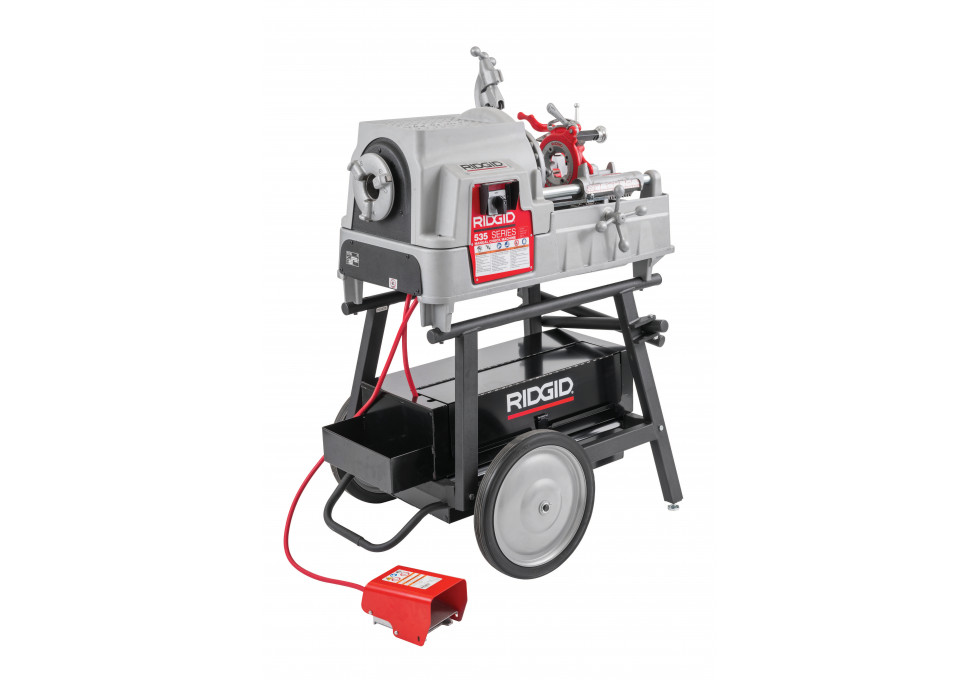

RIDGID 1/2" - 2" NPT Hammer Chuck Machine
Model 535M Threading Machine 1/2"-2" NPT, 115V with Automatic chuck
1/2" - 2" NPT Hammer Chuck Machine
Product #: RDG93287
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
RIDGID®, a leading manufacturer of innovative tools for the professional trades, offers over 300 types of tools. No customer reviews for the moment.
Product Description
The Ridgid 1/2" - 2" NPT Hammer Chuck Machine. 535M 115V 36 RPM 811 NPT DH
Build
- 36 RPM universal motor provides ample power for cutting threading and reaming 1/2" - 2" pipe.
- Integrated length gauge for accurate pipe cutting.
- Large oil reservoir for uninterupted threading
- Manual speed check with replacable jaws centers and grips pipe quickly.
- Includes 811A Die Head and dies for threading 1/2" - 2" pipe
- Can be used with geared Models 141 and 161 threaders.
- Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
Approximate Item/Package Dimensions in inches
- Width: 23.75
- Height: 27.0
- Length: 47.5
Approximate Item/Package Weight in pounds
- Weight: 286.0
Product Specifications
| Vendor Part #: | 93287 |
| Horsepower: | 0.5 |
| Max Operating Temperature: | 36 F |
| RPM: | 36 |
| Type: | AC Universal (Series) |
| Voltage: | 115 VLT |
| Weight: | 260 LB / 117.9 KG |
| Spec 1: | Pipe Capacity : 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders. |
| Spec 2: | Bolt Capacity : 1/4"-2" (6mm-50mm). |
| Spec 3: | Switches : Forward/off/reverse and integral foot switch. |
| Spec 4: | Chuck : Speed Chuck™ with three replaceable rocker-action jaw inserts. |
| Spec 5: | Rear Centering Device : Cam-action, turns with chuck. |
| Spec 6: | Cutters : Self-centering, full-floating. Two models available:Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering c |
| Spec 7: | Reamer : 5-flute cone, RH, 1/8"-2" (3mm-50mm). |
| Spec 8: | Oil Pump : Self-priming gerotor oil pump. |
| Spec 9: | Reamers : RH/LH combination reamer available. |
| Amperage: | 15 |
