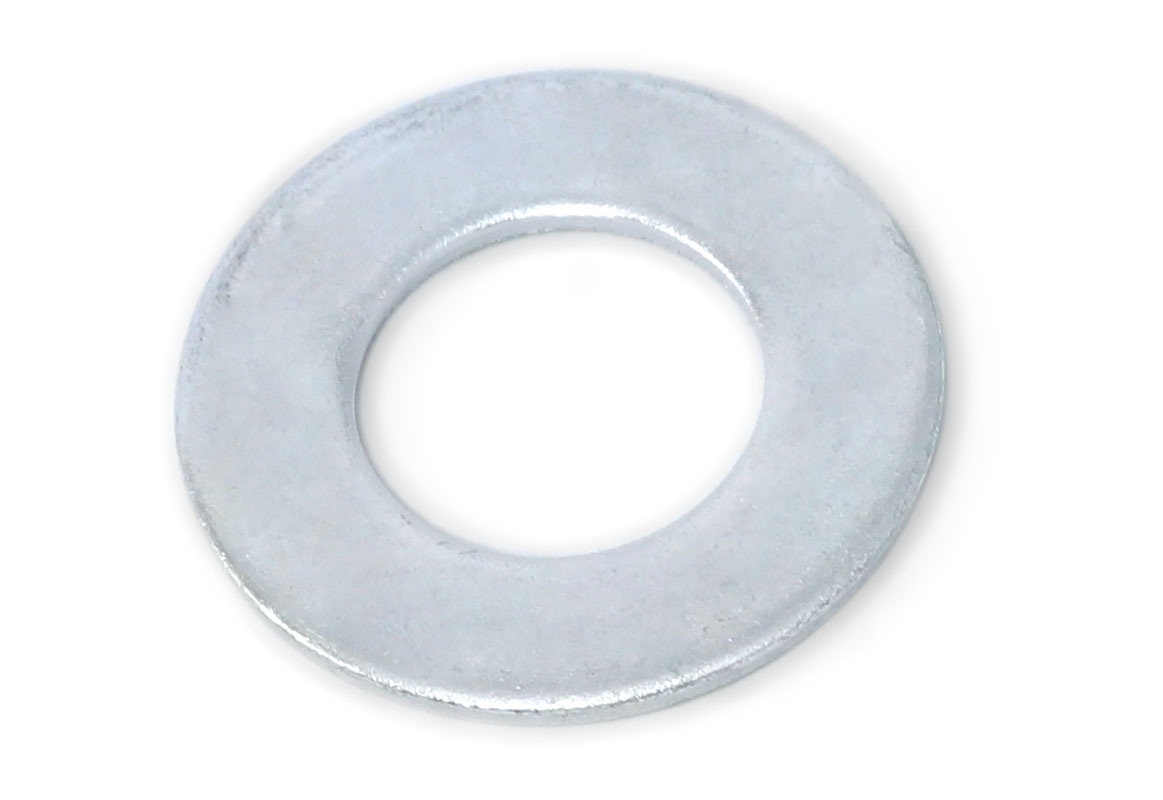

Flat Washers - S.A.E. - Low Carbon Steel / Zinc
Bright Zinc Chromate Plated / Rust-Resistant Finish - For various functions when assembled between the bearing surface of a fastener and the part being attached
Flat Washers - S.A.E. - Low Carbon Steel / Zinc
Bright Zinc Chromate Plated / Rust-Resistant Finish - For various functions when assembled between the bearing surface of a fastener and the part being attached
Product #: FWZ010SAE
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: For Bolt Dia.: 5/8"
Info: 21/32" I.D. || 1-5/16" O.D.
$53.99 /EA
Login for contractor price
Regular: $53.99 /
FWZ6SAE #6 5/32" I.D. || 3/8" O.D. , InStock
$5.99 /100PC
FWZ004SAE 1/4" 9/32" I.D. || 5/8" O.D. , InStock
$9.99 /100PC
FWZ005SAE 5/16" 11/32" I.D. || 11/16" O.D. , InStock
$9.99 /100PC
FWZ006SAE 3/8" 13/32" I.D. || 13/16" O.D. , InStock
$13.99 /100PC
FWZ007SAE 7/16" 15/32" I.D. || 59/64" O.D. , InStock
$21.99 /100PC
FWZ008SAE 1/2" 17/32" I.D. || 1-1/16" O.D. , InStock
$32.99 /100PC
FWZ009SAE 9/16" 19/32" I.D. || 1-3/16" O.D. , InStock
$44.99 /100PC
FWZ010SAE 5/8" 21/32" I.D. || 1-5/16" O.D. , InStock
$53.99 /100PC
FWZ012SAE 3/4" 13/16" I.D. || 1-1/2" O.D. , InStock
$67.99 /100PC
FWZ014SAE 7/8" 15/16" I.D. || 1-3/4" O.D. , InStock
$119.99 /100PC
FWZ016SAE 1" 1-1/16" I.D. || 2" O.D. , InStock
$139.99 /100PC
FWZ018SAE 1-1/8" 1-3/16" I.D. || 2-1/4" O.D. , InStock
$201.60 /100PC
FWZ020SAE 1-1/4" 1-5/16" I.D. || 2-1/2" O.D. , InStock
$229.99 /100PC
FWZ024SAE 1-1/2" 1-7/16" I.D. || 3" O.D. , InStock
$309.99 /100PC
For Bolt Dia.
Info
Qty Info
PROD #
Price
#6
5/32" I.D. || 3/8" O.D.
Sold per 100
Min Buy of 100
FWZ6SAE
$5.99 /100PC
1/4"
9/32" I.D. || 5/8" O.D.
Sold per 100
Min Buy of 100
FWZ004SAE
$9.99 /100PC
5/16"
11/32" I.D. || 11/16" O.D.
Sold per 100
Min Buy of 100
FWZ005SAE
$9.99 /100PC
3/8"
13/32" I.D. || 13/16" O.D.
Sold per 100
Min Buy of 100
FWZ006SAE
$13.99 /100PC
7/16"
15/32" I.D. || 59/64" O.D.
Sold per 100
Min Buy of 100
FWZ007SAE
$21.99 /100PC
1/2"
17/32" I.D. || 1-1/16" O.D.
Sold per 100
Min Buy of 50
FWZ008SAE
$32.99 /100PC
9/16"
19/32" I.D. || 1-3/16" O.D.
Sold per 100
Min Buy of 50
FWZ009SAE
$44.99 /100PC
5/8"
21/32" I.D. || 1-5/16" O.D.
Sold per 100
Min Buy of 50
FWZ010SAE
$53.99 /100PC
3/4"
13/16" I.D. || 1-1/2" O.D.
Sold per 100
Min Buy of 50
FWZ012SAE
$67.99 /100PC
7/8"
15/16" I.D. || 1-3/4" O.D.
Sold per 100
Min Buy of 25
FWZ014SAE
$119.99 /100PC
1"
1-1/16" I.D. || 2" O.D.
Sold per 100
Min Buy of 25
FWZ016SAE
$139.99 /100PC
1-1/8"
1-3/16" I.D. || 2-1/4" O.D.
Sold per 100
Min Buy of 25
FWZ018SAE$201.60 /100PC
1-1/4"
1-5/16" I.D. || 2-1/2" O.D.
Sold per 100
Min Buy of 25
FWZ020SAE
$229.99 /100PC
1-1/2"
1-7/16" I.D. || 3" O.D.
Sold per 100
Min Buy of 25
FWZ024SAE
$309.99 /100PC
Available Online: 3745
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
This item is sold in multiple of 100.
Minimal order quantity for this item is 50.
Call for availability. : 403-342-6030
QTY:
BUY DIRECT
FWZ6SAE #6 5/32" I.D. || 3/8" O.D.
$5.99 /100PC
FWZ004SAE 1/4" 9/32" I.D. || 5/8" O.D.
$9.99 /100PC
FWZ005SAE 5/16" 11/32" I.D. || 11/16" O.D.
$9.99 /100PC
FWZ006SAE 3/8" 13/32" I.D. || 13/16" O.D.
$13.99 /100PC
FWZ007SAE 7/16" 15/32" I.D. || 59/64" O.D.
$21.99 /100PC
FWZ008SAE 1/2" 17/32" I.D. || 1-1/16" O.D.
$32.99 /100PC
FWZ009SAE 9/16" 19/32" I.D. || 1-3/16" O.D.
$44.99 /100PC
FWZ010SAE 5/8" 21/32" I.D. || 1-5/16" O.D.
$53.99 /100PC
FWZ012SAE 3/4" 13/16" I.D. || 1-1/2" O.D.
$67.99 /100PC
FWZ014SAE 7/8" 15/16" I.D. || 1-3/4" O.D.
$119.99 /100PC
FWZ016SAE 1" 1-1/16" I.D. || 2" O.D.
$139.99 /100PC
FWZ018SAE 1-1/8" 1-3/16" I.D. || 2-1/4" O.D.
$201.60 /100PC
Call for availability. : 403-342-6030
FWZ020SAE 1-1/4" 1-5/16" I.D. || 2-1/2" O.D.
$229.99 /100PC
FWZ024SAE 1-1/2" 1-7/16" I.D. || 3" O.D.
$309.99 /100PC
FWZ003SAE 3/16" 1/4"I.D. || 9/16" O.D.
Call for availability. : 403-342-6030
FWZ026SAE 1-5/8" 1-3/4" I.D. || 3-3/4" O.D.
Call for availability. : 403-342-6030
FWZ032SAE 2" 2-1/8" I.D. || 4-1/2" O.D.
Call for availability. : 403-342-6030
FWZ4SAE #4 1/8" I.D. || 5/16" O.D.
Call for availability. : 403-342-6030
For Bolt Dia.
Info
Qty Info
PROD #
Price
#6
5/32" I.D. || 3/8" O.D.
Sold per 100
Min Buy of 100
FWZ6SAE
$5.99 /100PC
1/4"
9/32" I.D. || 5/8" O.D.
Sold per 100
Min Buy of 100
FWZ004SAE
$9.99 /100PC
5/16"
11/32" I.D. || 11/16" O.D.
Sold per 100
Min Buy of 100
FWZ005SAE
$9.99 /100PC
3/8"
13/32" I.D. || 13/16" O.D.
Sold per 100
Min Buy of 100
FWZ006SAE
$13.99 /100PC
7/16"
15/32" I.D. || 59/64" O.D.
Sold per 100
Min Buy of 100
FWZ007SAE
$21.99 /100PC
1/2"
17/32" I.D. || 1-1/16" O.D.
Sold per 100
Min Buy of 50
FWZ008SAE
$32.99 /100PC
9/16"
19/32" I.D. || 1-3/16" O.D.
Sold per 100
Min Buy of 50
FWZ009SAE
$44.99 /100PC
5/8"
21/32" I.D. || 1-5/16" O.D.
Sold per 100
Min Buy of 50
FWZ010SAE
$53.99 /100PC
3/4"
13/16" I.D. || 1-1/2" O.D.
Sold per 100
Min Buy of 50
FWZ012SAE
$67.99 /100PC
7/8"
15/16" I.D. || 1-3/4" O.D.
Sold per 100
Min Buy of 25
FWZ014SAE
$119.99 /100PC
1"
1-1/16" I.D. || 2" O.D.
Sold per 100
Min Buy of 25
FWZ016SAE
$139.99 /100PC
1-1/8"
1-3/16" I.D. || 2-1/4" O.D.
Sold per 100
Min Buy of 25
FWZ018SAE$201.60 /100PC
1-1/4"
1-5/16" I.D. || 2-1/2" O.D.
Sold per 100
Min Buy of 25
FWZ020SAE
$229.99 /100PC
1-1/2"
1-7/16" I.D. || 3" O.D.
Sold per 100
Min Buy of 25
FWZ024SAE
$309.99 /100PC
Product Description
Steel Flat Washers - S.A.E.
√ STEEL - FOR EXTRA STRENGTH
Bright Zinc Chromate Plated
ANSI/ASME B18.22.1
LOW CARBON STEEL
- For distributing the load between the fastener and the bearing surface
- Helps to ensure the tightness of fasteners and aid in preventing them from loosening
- Relieves friction between fastener and fastening material
- Zinc coating is a sacrificial topcoat used to aid in protecting the steel base material from corrosion
THICKNESS RANGE
- #2: 0.20"
- #4: 1/32"
- From #6 to #10: 3/64"
- From #12 to 7/16": 1/16"
- From 1/2" to 5/8": 3/32"
- From 3/4" to 1-1/8": 9/64"
- 1-1/4": 5/32"
- From 1-1/2" to 2": 3/16"
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
- Flat Washers: Washers built to distribute the load and reduce friction and heat when being tightened between a nut, bolt, or screw.
Product Specifications
| Vendor Part #: | FWZ004SAE |
| Material: | Low Carbon Steel |
| Plating: | Zinc |
- √Preventing Fasteners from Loosening
- √Distributing Load
- √Barrier Between Materials
