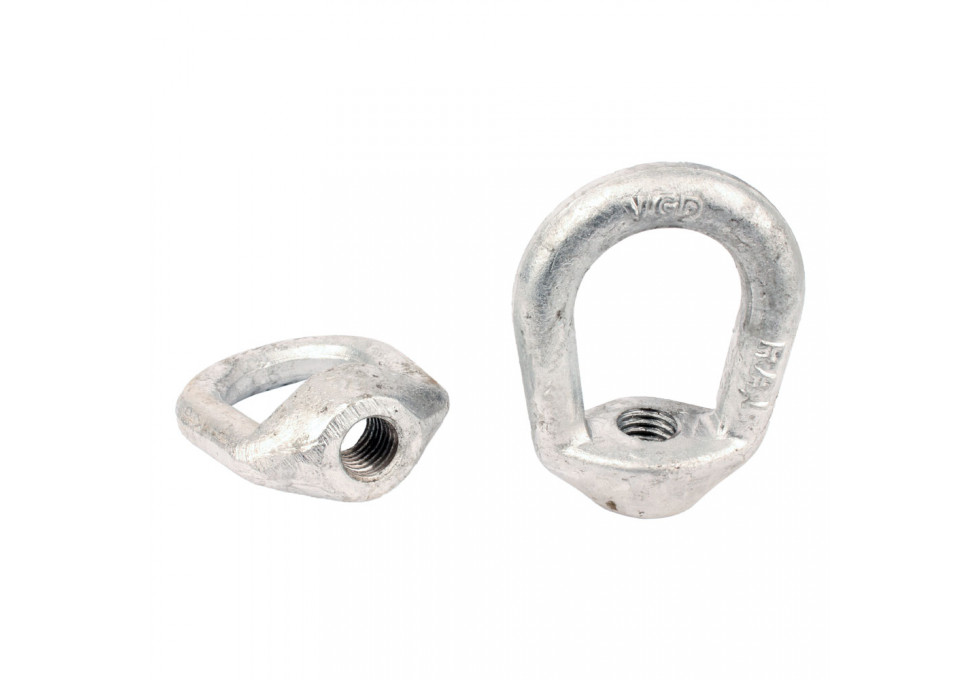

Vanguard Steel 1/2" Forged Eye Nut, Grade 2 Galvanized, UNC
Forged carbon steel, quenched and tempered, hot dipped galvanized.
1/2" Forged Eye Nut, Grade 2 Galvanized, UNC
Forged carbon steel, quenched and tempered, hot dipped galvanized.
Product #: VAN2974-0024
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Product Description
The Vanguard 1/2" Forged Eye Nut, Grade 2 Galvanized, UNC.
- Permanently embossed with trace code, VG © and size for traceability to meet ASME B30.26
- Forged carbon steel
- Quenched and tempered
- Hot dipped galvanized
- UNC Threads
- Design factor proof load 2:1 WLL, ultimate load 5:1 WLL
Specifications
| Note: order by tap size, markings on the eye nut are for the body stock size | |||||||||||
| Dimensions (in): | |||||||||||
| Nominal | 3/8 | ||||||||||
| Tap Size | 1/2 | ||||||||||
| A | 2.005 | ||||||||||
| C | 1.232 | ||||||||||
| D | 1.478 | ||||||||||
| E | 0.975 | ||||||||||
| S | 0.394 | ||||||||||
| T | 2.513 | ||||||||||
| M | 0.425 | ||||||||||
| WLL (lbs) | 2,250 | ||||||||||
| Weight (lbs) | .28 | ||||||||||
| Vanguard Code | 2974.0024 | ||||||||||
| Size | 3 |
Approximate Item/Package Dimensions in inches
- Width: 2.0625
- Height: 1.0625
- Depth: 2.5
Approximate Item/Package Weight in pounds
- Weight: 0.298
Product Specifications
| Vendor Part #: | 29740024 |
